  11. Pump Motor, 5 HP, 3450 RPM, 208-230 V

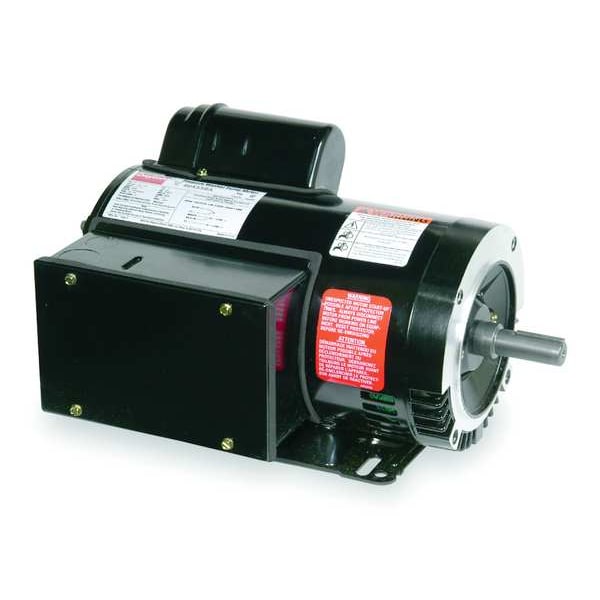

Dayton Pump Motor, 5 HP, 3450 RPM, 208-230 V 117613.00 - main

Pump Motor, 5 HP, 3450 RPM, 208-230 V

  • Mfr # 117613.00

  • Zoro # G0253714

product price: $865.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
5
Nameplate RPM
3,450
Frame
56HCZ
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
117613.00
Zoro #
G0253714
UPC #
190735335543
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/4 in
Shaft Length
1 7/8 in
Shaft Dia. (In.)
3/4

Details

Item
Pressure Washer Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
5
Nameplate RPM
3,450
Frame
56HCZ
Motor Shaft Rotation
CWSE
Voltage
208-230V AC
RPM Range
3,001-3,600
Motor Service Factor
1.15
Motor Mounting Type
Face/Base
Phase
Single
Motor Bearings
Ball
Ins. Class
B
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Includes
Water Slinger and Keyway
Ambient Temperature
40 Degrees C
Motor Thermal Protection
Manual
Motor Application
Pressure Washer
Full Load Amps
22.0-20.0
Hz
60 Hz
Standards
UL Recognized and CSA Certified
Max. Ambient Temp.
40 Degrees C

Description

Pressure Washer Motor, Frame 56HCZ, Hz 60 Hz, Full Load Amps 22.0-20.0, HP 5, Includes Water Slinger and Keyway, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Application Pressure Washer, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Enclosure Design Open Dripproof
