Shop MARATHON

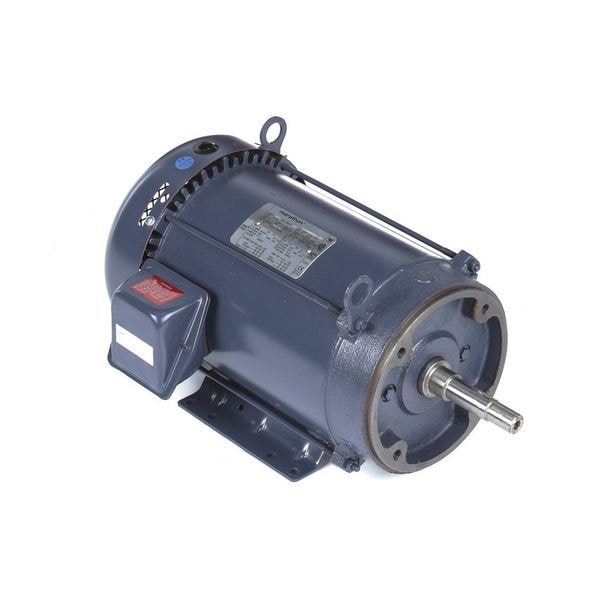

Close-Coupled Pump Motor, 1770 rpm, 10 HP

  • Mfr # 215TTFBD6031
  • Zoro # G6418426
product price:
$
1,678.99
/ea
Additional $125.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
10 hp
RPM Range
1,701-1,800
Nameplate RPM
1,760
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
215TTFBD6031
Zoro #
G6418426
UPC #
-
Country of Origin
Mexico
Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
10 hp
RPM Range
1,701-1,800
Nameplate RPM
1,760
Voltage
230V AC, 460V AC
Frame
215JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Ins. Class
F
Motor Bearings
Ball
Motor Thermal Protection
None
Frame Material
Steel
Motor Frame Material
Steel
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Inverter Rated
Inverter Rated
Motor Sub Application
Close-Coupled Pump
Motor Shaft Design
JM Threaded
Full Load Amps
25.0/12.5 A
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Motor Application
Pump
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
92.1 %
Standards
CE Mark, CSA Certified, UL Recognized
CC Number
CC003A
Phase
Three
Hz
60 Hz
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
185 lb
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Duty Cycle
Continuous
Conduit Box Location
Exterior
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Inverter Rating
10:1
Conduit Box Position
F1, F2
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Insulation Class
F
Frequency
60 Hz
Mounting Position
Horizontal
Application
Pump
Shaft Thread Type
JM
NEMA Design Class
B
Shaft Design
Threaded
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Number of Speeds
1
Full Load Current @ 60 Hz
25.0/12.5 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
Premium Efficiency (IE3)

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 25.0/12.5, Height 11 in, HP 10, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 10:1, Length Less Shaft 17 5/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group NEMA Premium Efficient
