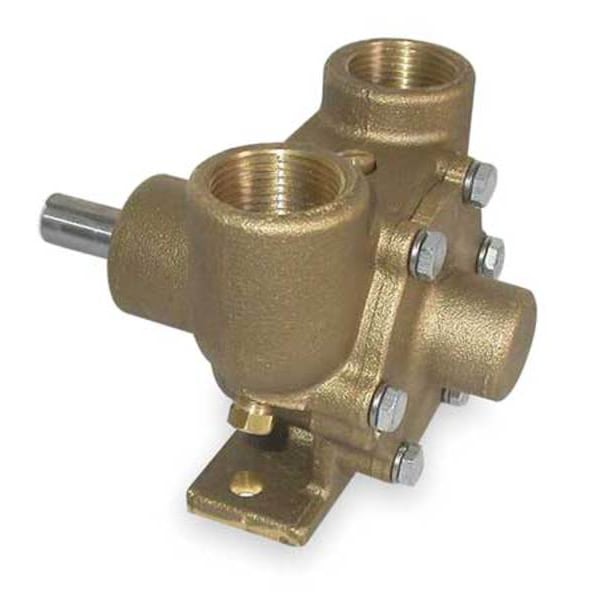

Dayton Pump, Pedestal, Inlet/Outlet 1 In 3ACB2 - main

Pump, Pedestal, Inlet/Outlet 1 In

  • Mfr # 3ACB2

  • Zoro # G0617775

product price: $342.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Inlet/Outlet (In.)
1 NPT
GPM of Water @ 5 Ft. of Head
20.2 gpm
Max. Head (Ft.)
85 ft
Max. Pressure (PSI)
36.7 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3ACB2
Zoro #
G0617775
UPC #
190735279021
Country of Origin
China

Dimensions

Length (In.)
5 11/16 in
Width (In.)
4 11/16 in
Height (In.)
4 1/4 in
Shaft Dia. (In.)
5/8 in
Size Height O.C. (In.)
2 1/8 in
Overall Height
4.3 in
Overall Width
4.7 in
Overall Length
5.7 in
Impeller Diameter
65 1/2 mm
Discharge Connection Size
1 in
Shaft Outer Diameter
5/8 in
Media Intake Connection Size
1 in

Details

Item
Impeller Pump
HP
1 hp
Inlet/Outlet (In.)
1 NPT
GPM of Water @ 5 Ft. of Head
20.2 gpm
Max. Head (Ft.)
85 ft
Max. Pressure (PSI)
36.7 psi
Max. Liquid Temp. (F)
180 Degrees F
Bearings
Carbon Graphite
GPM of Water @ 10 Ft. of Head
19.6 gpm
Max. Suction Lift (Ft.)
10.2 ft
Seals
Carbon, Ceramic
Includes
Manual
GPM of Water @ 30 Ft. of Head @ 1725 RPM
18 gpm
GPM of Water @ 10 Ft. of Head @ 1725 RPM
19.6 gpm
Max. SSU @ 1725 RPM
5,000 SUS
GPM of Water @ 20 Ft. of Head
18.8 gpm
Min. Start Torque (In.-Lbs.)
52 in-lb
GPM of Water @ 60 Ft. of Head
14.7 gpm
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
Characteristics
Pumps are Bi-Directional
GPM of Water @ 50 Ft. of Head
16 gpm
Mounting Holes O.C. (In.)
2 3/4 in
Body Material
Bronze and Brass
Type
Pump Head, Close Coupled
RPM
1,750 RPM
GPM of Water @ 30 Ft. of Head
18 gpm
GPM of Water @ 40 Ft. of Head
17 gpm
Impeller
Nitrile
Shaft Material
Stainless Steel
Pumps Up To (Ft.)
95 ft
Self-Priming
Yes
Impeller Material
Buna-N
Housing Material
Brass
Flow Rate @ 5 ft of Head - Maximum
20.2 gpm
Flow Rate @ 30 ft of Head - Maximum
18 gpm
Discharge Connection Type
NPT
Priming
Self-Priming
Media Temperature - Maximum
180 Degrees F
Motor Mounting Type
Close Coupled
Flow Rate @ 10 ft of Head - Maximum
19.6 gpm
Bearing Material
Carbon Graphite
Seal Type
Mechanical
Flow Rate - Maximum
20.5 gpm
Operating Pressure - Maximum
36.7 psi
Horsepower - Maximum
1 hp
Bearing Type
Ball, Sleeve
Flow Rate @ 40 ft of Head - Maximum
17 gpm
Viscosity - Maximum
5,000 SUS
Wetted Material
Brass, Neoprene, Stainless Steel
Suction Lift - Maximum
10.2 ft
Flow Rate - Minimum
0 gpm
Duty Cycle
Intermittent
Media Intake Connection Type
NPT
Feet of Head - Maximum
85 ft
Seal Material
Carbon, Ceramic
Required Horsepower
1 hp
Motor Speed - Maximum
1,750 RPM
Flow Rate @ 20 ft of Head - Maximum
18.8 gpm
Flow Rate @ 1 ft of Head - Maximum
20.4 gpm

Description

Impeller Pump, Discharge Connection Size 1 in, Discharge Connection Type NPT, Feet of Head - Maximum 85 ft, Flow Rate - Maximum 20.5 gpm, Housing Material Brass, Impeller Material Buna-N, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Priming Self-Priming, Required Horsepower 1 hp, Shaft Material Stainless Steel, Shaft Outer Diameter 5/8 in, Viscosity - Maximum 5,000 SUS, Motor Mounting Type Close Coupled, Operating Pressure - Maximum 36.7 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
