Shop DAYTON

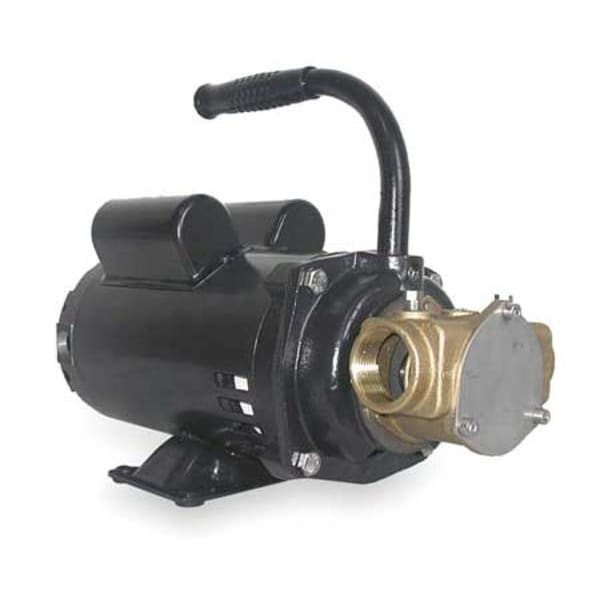

Pump, Bronze, 3/4 HP, 115/230V, 14.0/7.0Amps

  • Mfr # 3ABZ6

  • Zoro # G2644582

product price:
$
1,818.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Voltage
115/230
Amps
14.0/7.0
Motor Enclosure
Open Drip Proof
NEMA Motor Frame
56YZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3ABZ6
Zoro #
G2644582
UPC #
190735278888
Country of Origin
China

Dimensions

Length (In.)
13 19/64 in
Width (In.)
6 45/64 in
Height (In.)
12 in
Overall Width
6.5 in
Overall Height
10.7 in
Overall Length
15.6 in
Shaft Outer Diameter
5/8 in
Impeller Diameter
2 5/8 in
Media Intake Connection Size
1 in
Discharge Connection Size
1 in
Inlet Internal Diameter
1 in
Discharge Internal Diameter
1 in
Wire Rope Length
15.6 in
Length
15.6 in

Details

Item
Utility Pump
HP
3/4 hp
Voltage
115/230
Amps
14.0/7.0
Motor Enclosure
Open Drip Proof
NEMA Motor Frame
56YZ
Inlet/Outlet (In.)
1 NPT
Max. Head (Ft.)
80 ft
Max. Pressure (PSI)
34.6 psi
Seal
Nitrile Lip
Max. SSU @ 1725 RPM
5,000 SUS
Suction Lift (Ft.)
10
Temp. Range (F)
0 to 180
Prime in Feet
10 Feet and 15 Feet with Foot Valve and Pumps Flooded
GPM of Water @ 40 Ft. of Head
16.5 gpm
Impeller Material
Buna-N
Max. Viscosity
5,000 SUS
GPM of Water @ 30 Ft. of Head
17.8 gpm
Includes
Carrying Handle, Manual
Type
Flexible Impeller
Housing Material
Brass
Self-Priming
Yes
Characteristics
Positive Displacement Pumping Action Without Metal-to-Metal Contact.
Shaft Material
Stainless Steel
Motor Type
Capacitor-Start/Run
GPM of Water @ 20 Ft. of Head
19.5 gpm
GPM of Water @ 60 Ft. of Head
11 gpm
RPM
1,725 RPM
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
GPM of Water @ 10 Ft. of Head
20.6 gpm
Wetted Material
Brass, Buna-N, Stainless Steel
Seal Material
Buna-N
Operating Pressure - Maximum
34.6 psi
Flow Rate @ 20 ft of Head - Maximum
19.5 gpm
Suction Lift - Maximum
10 ft
Flow Rate @ 30 ft of Head - Maximum
17.8 gpm
Feet of Head - Maximum
80 ft
Current
8 A
Nameplate Voltage
115/230V AC
Bearing Material
Stainless Steel
Frequency
60 Hz
Horsepower - Maximum
3/4 hp
Motor Mounting Type
Horizontal
Viscosity - Maximum
5,000 SUS
For Media Type
Hydraulic Fluids, Petroleum Oils, Silicone Grease
Flow Rate @ 1 ft of Head - Maximum
21.2 gpm
Discharge Connection Type
FNPT
Flow Rate @ 50 ft of Head - Maximum
13.6 gpm
Flow Rate @ 40 ft of Head - Maximum
16.5 gpm
Compatible Motor Frame
56YZ
Motor Speed - Maximum
1,725 RPM
Bearing Type
Ball
Phase
Single
Flow Rate @ 60 ft of Head - Maximum
11 gpm
Media Temperature - Minimum
0 Degrees F
Media Intake Connection Type
FNPT
Seal Type
Lip
Priming
Self-Priming
Media Temperature - Maximum
180 Degrees F
Flow Rate @ 10 ft of Head - Maximum
20.6 gpm
Discharge Internal Gender
Female
Inlet Internal Gender
Female
Inlet Internal Standard
NPT
Discharge Internal Standard
NPT

Description

Utility Pump, Housing Material Brass, Horsepower - Maximum 3/4 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 10 ft of Head - Maximum 20.6 gpm, Viscosity - Maximum 5,000 SUS, Feet of Head - Maximum 80 ft, Discharge Connection Size 1 in, Media Intake Connection Size 1 in, Media Intake Connection Type FNPT, Impeller Material Buna-N, Discharge Connection Type FNPT, Cord Length Not Applicable, Priming Self-Priming, Operating Pressure - Maximum 34.6 psi, Suction Lift - Maximum 10 ft
