Shop DAYTON

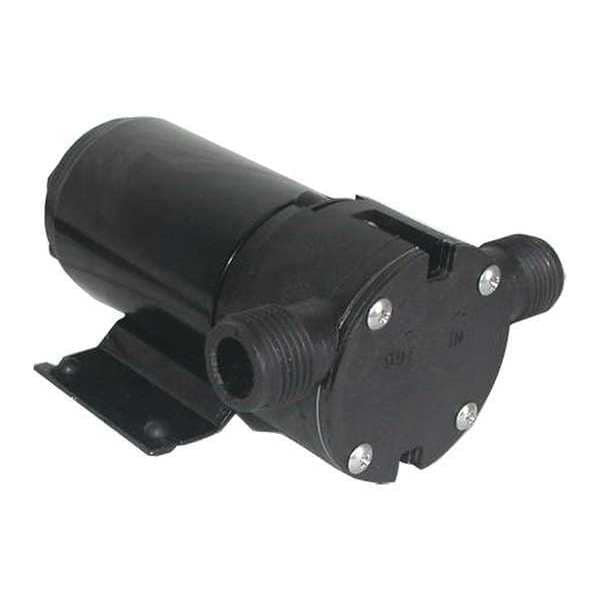

Pump, Plastic, 1/12 HP, 12VDC, 7.5 Amps

  • Mfr # 3ACA5

  • Zoro # G1954547

product price:
$
175.99
/ea
Free Shipping & Returns

Key Features

HP
1/12 hp
Voltage
12V DC
Amps
7.5
Motor Enclosure
Totally Enclosed Fan Cooled
Inlet/Outlet (In.)
3/4 MGHT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3ACA5
Zoro #
G1954547
UPC #
190735278963
Country of Origin
China

Dimensions

Width (In.)
4 3/4 in
Length (In.)
6 in
Cord Length
1 ft
Height (In.)
3 1/8 in
Overall Height
3.1 in
Overall Length
6 in
Overall Width
4.8 in
Media Intake Connection Size
3/4 in
Shaft Outer Diameter
5/8 in
Impeller Diameter
1 3/8 in
Discharge Connection Size
3/4 in
Discharge External Diameter
3/4 in
Inlet External Diameter
3/4 in
Discharge Internal Diameter
3/8 in
Inlet Internal Diameter
3/8 in
Wire Rope Length
6 in
Length
6 in

Details

Item
Utility Pump
HP
1/12 hp
Voltage
12V DC
Amps
7.5
Motor Enclosure
Totally Enclosed Fan Cooled
Inlet/Outlet (In.)
3/4 MGHT
Max. Head (Ft.)
40 ft
Max. Pressure (PSI)
17.3 psi
Type
Flexible Impeller
Motor Type
TEFC
Characteristics
Positive Displacement Pumping Action Without Metal-to-Metal Contact.
GPM of Water @ 30 Ft. of Head
1.3 gpm
GPM of Water @ 40 Ft. of Head
0 gpm
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
Seal
Nitrile Lip
GPM of Water @ 0 Ft. of Head
4 gpm
Prime in Feet
7.5
GPM of Water @ 10 Ft. of Head
3.4 gpm
Max. Viscosity
3,000 SUS
Suction Lift (Ft.)
7.5
RPM
4,000 RPM
Housing Material
Plastic
GPM of Water @ 11 Ft. of Head
3.2 gpm
Temp. Range (F)
185
Impeller Material
Buna-N
Shaft Material
Stainless Steel
Self-Priming
Yes
GPM of Water @ 23 Ft. of Head
2.8 gpm
Max. SSU @ 1725 RPM
3,000 SUS
GPM of Water @ 20 Ft. of Head
2.6 gpm
Includes
Manual
Horsepower - Maximum
1/12 hp
Motor Mounting Type
Horizontal
Motor Speed - Maximum
4,000 RPM
Viscosity - Maximum
3,000 SUS
Flow Rate @ 30 ft of Head - Maximum
1.3 gpm
Bearing Material
Stainless Steel
For Media Type
Motor Oils, Water
Priming
Self-Priming
Discharge Connection Type
Hose
Flow Rate @ 10 ft of Head - Maximum
3.4 gpm
Phase
Single
Nameplate Voltage
12V DC
Media Temperature - Minimum
32 Degrees F
Seal Material
Buna-N
Media Intake Connection Type
MGHT
Seal Type
Lip
Operating Pressure - Maximum
17.3 psi
Suction Lift - Maximum
7.5 ft
Flow Rate @ 40 ft of Head - Maximum
0 gpm
Bearing Type
Ball
Wetted Material
Buna-N, Plastic, Stainless Steel
Current
7.5 A
Feet of Head - Maximum
40 ft
Flow Rate @ 20 ft of Head - Maximum
2.6 gpm
Media Temperature - Maximum
185 Degrees F
Frequency
60 Hz
Flow Rate @ 1 ft of Head - Maximum
3.9 gpm
Discharge External Gender
Male
Inlet External Standard
Garden Hose Thread
Inlet Internal Standard
NPT
Discharge Internal Gender
Female
Inlet Internal Gender
Female
Inlet External Gender
Male
Discharge Internal Standard
NPT
Discharge External Standard
Garden Hose Thread

Description

Utility Pump, Housing Material Plastic, Horsepower - Maximum 1/12 hp, Nameplate Voltage 12V DC, Flow Rate @ 10 ft of Head - Maximum 3.4 gpm, Viscosity - Maximum 3,000 SUS, Feet of Head - Maximum 40 ft, Discharge Connection Size 3/4 in, Media Intake Connection Size 3/4 in, Media Intake Connection Type MGHT, Impeller Material Buna-N, Discharge Connection Type Hose, Cord Length 1 ft, Priming Self-Priming, Operating Pressure - Maximum 17.3 psi, Suction Lift - Maximum 7.5 ft
