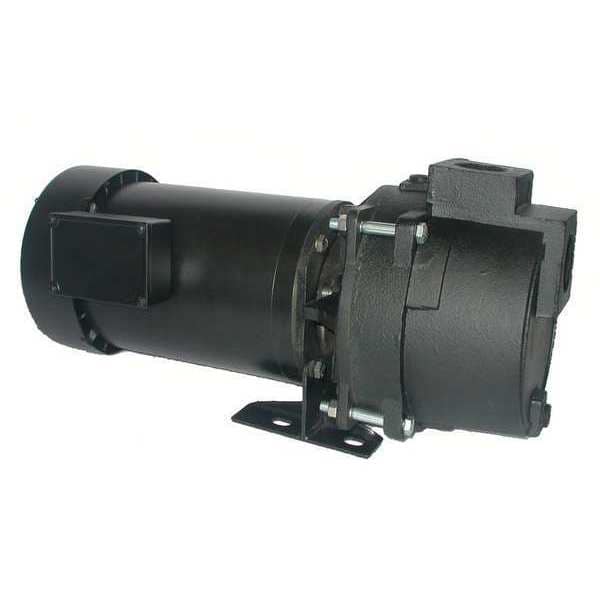

Pump, Sprinkler, 2 HP, 3 Ph

DAYTON| Zoro #: G0533942| Mfr #: 5RWJ0

$767.04 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0533942 Mfr #: 5RWJ0
Max. Case Pressure: 150 psiMax. Specific Gravity: 1
Impeller Type: ClosedSeal Material: Buna-N, Carbon, Ceramic, Stainless Steel
Hz: 60Port Rotation: 90 Degrees Increments
Manufacturers Warranty Length: 1 yearImpeller Material: Stainless Steel
Agency Compliance: Motor Only CSAHousing Material: Cast iron
Motor Enclosure: TEFCWetted Materials: Cast Iron, Stainless Steel, Buna-N, Carbon, Ceramic
Includes: ManualDuty: Continuous
Features: Removable and Replaceable Volute/Diffusers, Front Drain PlugItem: Sprinkler Pump
Bearing Type: Double Shielded Pre Lubricated BallPhase: 3
Inlet (In.): 1-1/2Item: Sprinkler Pump
HP: 2Voltage: 208-230/460
Amps: 9.7-9.1/4.6GPM @ 10 PSI: 62
GPM @ 15 PSI: 61GPM @ 20 PSI: 59
GPM @ 25 PSI: 55GPM @ 30 PSI: 52
GPM @ 35 PSI: 48GPM @ 40 PSI: 45
GPM @ 45 PSI: 41GPM @ 50 PSI: 36
GPM @ 60 PSI: 28GPM @ 65 PSI: 22
Motor Type: 3-PhaseInlet: 1-1/2"
Length: 18-3/4"Best Efficiency GPM @ Head: 42 @ 80 ft.
Max. Head: 118 ft.Inlet Pressure: 75 psi
Height: 10-11/16"Max. Pressure: 75 psi
Frame: 56JStages: 1
Width: 8"GPM @ 55 PSI: 32
Outlet: 1-1/2"Country of Origin (subject to change): China

Product Description

Sprinkler Pump, Self-Priming, Housing Material Cast Iron, Inlet 1-1/2 In, Outlet 1-1/2 In, 2 HP, 3 Phase, Voltage 208-230/460, Amps 9.7-9.1/4.6, 60 Hz, Suction Lift 25 Ft., Shut-Off 173 Ft., Max. Pressure 75 PSI, Stages 1, Motor Enclosure TEFC, Motor Type 3-Phase, 3450 RPM, Application Lawn Sprinking, Spraying Irrigation, Draining and General Dewatering Application, Etc., Includes Manual
