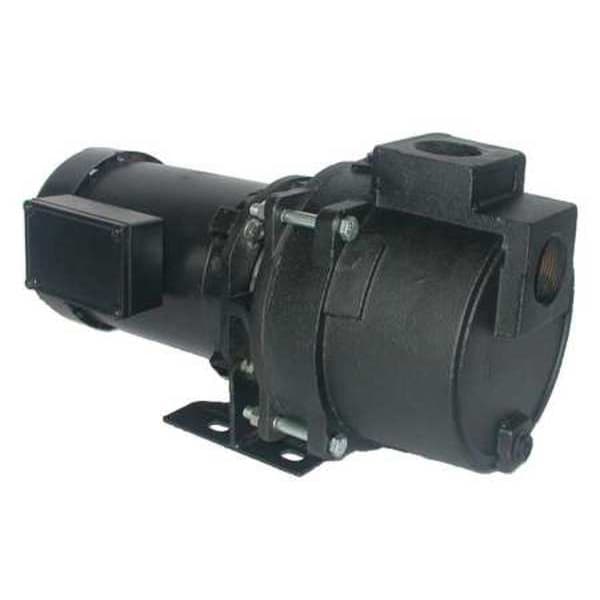

Pump, Sprinkler, 3/4HP, 3 Ph

DAYTON| Zoro #: G1502873| Mfr #: 5RWH8

$432.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1502873 Mfr #: 5RWH8
Manufacturers Warranty Length: 1 yearDuty: Continuous
Seal Material: Buna-N, Carbon, Ceramic, Stainless SteelMax. Case Pressure: 150 psi
Impeller Type: ClosedIncludes: Manual
Features: Removable and Replaceable Volute/Diffusers, Front Drain PlugPort Rotation: 90 Degrees Increments
Agency Compliance: Motor Only CSAMax. Specific Gravity: 1
Motor Enclosure: TEFCHousing Material: Cast iron
Wetted Materials: Cast Iron, Stainless Steel, Buna-N, Carbon, CeramicHz: 60
Item: Sprinkler PumpImpeller Material: Stainless Steel
Bearing Type: Double Shielded Pre Lubricated BallPhase: 3
Inlet (In.): 1-1/2Item: Sprinkler Pump
HP: 3/4Voltage: 208-230/460
Amps: 5.2-5.0/2.5GPM @ 10 PSI: 48
GPM @ 15 PSI: 45GPM @ 20 PSI: 38
GPM @ 25 PSI: 34GPM @ 30 PSI: 26
GPM @ 35 PSI: 15Motor Type: 3-Phase
Inlet Pressure: 111 psiHeight: 10-11/16"
Max. Pressure: 39 psiFrame: 56J
Stages: 1Width: 8"
Outlet: 1-1/2"Inlet: 1-1/2"
Length: 17-5/16"Best Efficiency GPM @ Head: 26 @ 46 ft.
Max. Head: 83 ft.Country of Origin (subject to change): China

Product Description

Sprinkler Pump, Self-Priming, Housing Material Cast Iron, Inlet 1-1/2 In, Outlet 1-1/2 In, 3/4 HP, 3 Phase, Voltage 208-230/460, Amps 5.2-5.0/2.5, 60 Hz, Suction Lift 25 Ft., Shut-Off 90 Ft., Max. Pressure 39 PSI, Stages 1, Motor Enclosure TEFC, Motor Type 3-Phase, 3450 RPM, Application Lawn Sprinking, Spraying Irrigation, Draining and General Dewatering Application, Etc., Includes Manual
