Shop DAYTON

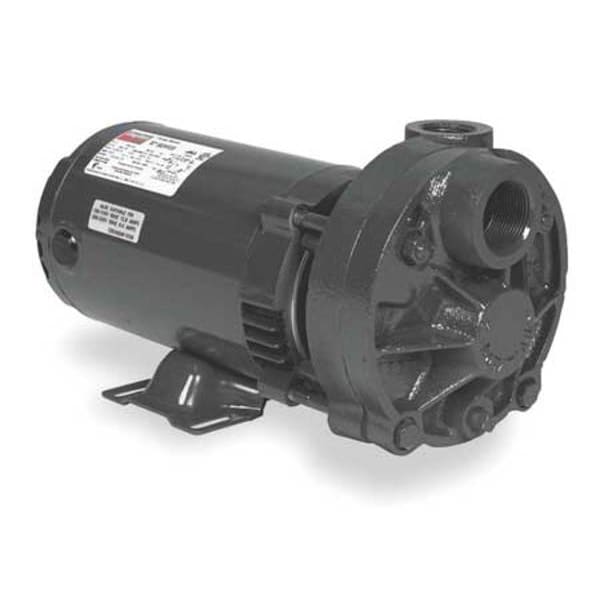

Pump, Turbine, 1/2 HP

  • Mfr # 4P913

  • Zoro # G3113677

product price:  $1,063.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
115/230
Wetted Materials
Bronze Fitted, Cast Iron
Seal Material
Buna-N/Carbon/Ceramic (Face)
Max. Pressure
300 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4P913
Zoro #
G3113677
UPC #
190735331521
Country of Origin
United States

Dimensions

Max. Dia. Solids
25 Microns
Width
6 3/4 in
Height
7 7/8 in
Manufacturers Warranty Length
1 yr
Overall Height
7.88 in
Overall Width
6.75 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1 in
Compatible Intake Pipe Size
1 1/4 in
Solid Diameter (Maximum)
25 micron
Discharge Diameter
1 in
Inlet Diameter
1 1/4 in

Details

HP
1/2 hp
Voltage
115/230
Wetted Materials
Bronze Fitted, Cast Iron
Seal Material
Buna-N/Carbon/Ceramic (Face)
Max. Pressure
300 psi
Motor Type
Capacitor-Start
GPM @ 10 PSI
4.2
GPM @ 20 PSI
4.1
Phase
Single
Motor Enclosure
Open Drip Proof
GPM @ 50 PSI
3.8
GPM @ 30 PSI
4.0
Outlet
1 in
Best Efficiency GPM @ Head
3.1 gpm @ 112 psi ft
Agency Compliance
UL and CSA on Motor Only
GPM @ 150 PSI
2.6
Inlet (In.)
1-1/4
GPM @ 100 PSI
3.2
Impeller Type
Regenerative Turbine
Bearing Type
Sealed Ball Bearing (Motor Bearing)
Inlet
1-1/4 in
Impeller Material
Bronze
Item
Turbine Pump
GPM @ 60 PSI
3.7
Frame
56c
GPM @ 75 PSI
3.5
Inlet Pressure
200 psi
Max. Specific Gravity
1
Max. Case Pressure
300 psi
Duty
Continuous
Includes
Cast Casing
Housing Material
Cast iron
Port Rotation
90 Degrees Increments
Features
100% Tested, 300 lb Case Working Pressure, Low NPSH, Mechanical Seals, Non-Cavitating, Self-Adjusting Impeller, Shaft Sleeve, Steep Operating Characteristics, Volatile Fluid Handling, Water Flinger
Standards
AISI 304, AISI 316, ASTM A48, ASTM B16, ASTM B62
Intake Type
NPT
Maximum Flow Rate
40 gpm
Shut Off Pressure (Maximum)
170 psi
Compatible with Media Type
Water
Flow Rate @ 50 psi
3.85 gpm
NPSHr
462 ft
Number of Stages
1
Series
T51
Discharge Type
NPT
Frequency
60 Hz
Horsepower
1/2 hp
Flow Rate @ 100 psi
3.3 gpm
Maximum Media Temperature
300 Degrees F
Electrical Connection Type
Plug-In
Operation
Manual
Flow Rate @ 90 psi
3.4 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 30 psi
4.1 gpm
Flow Rate @ 120 psi
3.05 gpm
Maximum Feet of Head
700 ft
Maximum RPM
3,450 RPM
Wetted Material
Bronze Fitted, Cast Iron
Discharge Rotation
90 Degrees Increments
Minimum Flow Rate
2 gpm
Thermal Overload Protection
Yes
Flow Rate @ 80 psi
3.5 gpm
Flow Rate @ 20 psi
4.2 gpm
Nameplate Voltage
115/230V AC
Flow Rate @ 40 psi
4 gpm
Flow Rate @ 10 psi
4.3 gpm
Flow Rate @ 70 psi
3.55 gpm
Specific Gravity (Maximum)
1
Minimum Media Temperature
-20 Degrees F
Impeller Design
Peripheral Vaned
Case Pressure (Maximum)
300 psi
Duty Cycle
Continuous
Best Efficiency Head
112 ft
Motor Frame Designation
56C
Seal Type
Mechanical, O-Ring, Sealless
Flow Rate @ 60 psi
3.75 gpm
Mounting Orientation
Horizontal, Vertical
Priming
Manual
Media Temperature - Maximum
230 Degrees F
Feet of Head (Maximum)
700 ft
Flow Rate (Minimum)
2 gpm
Pump Design
Regenerative Turbine
Ambient Temperature - Maximum
86 Degrees F
Power Source
Electric Motor
Full Load Current
8.6/4.0-4.3
Ambient Temperature - Minimum
-20 Degrees F
Best Efficiency Flow
3.1 gpm
Flow Rate (Maximum)
40 gpm
Pumping Application
Boiler Feed, Booster Service, Condensate Return, Cooling and Heat Transfer, Liquid Transfer
Shaft Seal Material
Buna-N/Carbon/Ceramic
Shut Off Pressure - Maximum
182 psi
Shaft Seal Type
Mechanical
Chemical Compatibility
Water
Media Temperature - Minimum
-20 Degrees F
Case Pressure - Maximum
300 psi
Power Source - TS Only
Electric Motor

Description

Turbine Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Drip Proof, Horsepower 1/2 hp, Nameplate Voltage 115/230V AC, Shut Off Pressure (Maximum) 170 psi, Maximum Feet of Head 700 ft, Maximum Flow Rate 40 gpm, Flow Rate @ 10 psi 4.3 gpm, Flow Rate @ 20 psi 4.2 gpm, Flow Rate @ 30 psi 4.1 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type Capacitor-Start, Best Efficiency Head 112 ft
