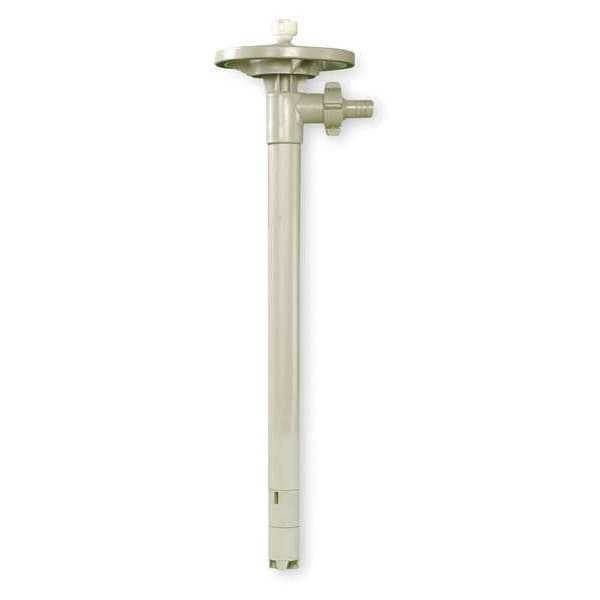

Dayton Repl Drum Pump Tube, Polypropylene 1DLL2 - main

Repl Drum Pump Tube, Polypropylene

  • Mfr # 1DLL2

  • Zoro # G2960806

product price: $403.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
16 psi
For Use With
Liquid Transfer
Adapter Material
Polypropylene
Max. Viscosity
1500 CPS
Self-Priming
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DLL2
Zoro #
G2960806
UPC #
190735135273
Country of Origin
United States

Dimensions

Inlet Size
1 5/8 in
Height
39"
Suction Tube Length
39 in
Overall Length
43 in
Outlet Size
1 in
For Container Size
55 gal

Details

Item
Drum Pump Tube
Max. Pressure
16 psi
For Use With
Liquid Transfer
Adapter Material
Polypropylene
Max. Viscosity
1500 CPS
Self-Priming
Yes
GPM
32
Wetted Materials
Carbon Graphite, Hasteloy C-276, Polypropylene, PTFE
Max. Head
36 ft
Max. Liquid Temp.
130 Degrees F
Includes
Hose Barb
Seal Material
Sealless
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonium Hydroxide, Chromic Acid 30%, Cyclohexane, DEF, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Heptane, Hexane, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Xylene
Suction Tube Material
Polypropylene
Discharge Tube Outlet OD
1 1/2 in
Max. Flow Rate
35 gpm
Diesel Exhaust Fluid Compatible
No
Discharge Connection Type
Hose Barb
Suction Tube OD
1 in
Discharge Tube Outlet ID
1 in
For Container Type
Drum
For Media Type
Acetic Acid, Ammonia, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Glycerin, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water
Suction Tube ID
1 1/3 in
Max. Fluid Temp.
130 Degrees F
Runs Dry
Yes
Food Grade
No
Compatible Chemicals
Acetic Acid 20%, Acetic Acid 80%, Ammonia (Liquids), Calcium Chloride, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sulfuric Acid (10% - 75%)
Max. Head Pressure
16 psi
Gear Lube
NT
Grease
NT

Description

Drum Pump Tube, Suction Tube Length 39 in, Pump Package Type Drum Pump Tube, Suction Tube Material Polypropylene, Suction Tube ID 1 5/16 in, Suction Tube OD 1 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 1/2 in, Discharge Connection Type Hose Barb, Overall Length 43 in, For Container Size 55 gal, For Container Type Drum, Max. Flow Rate 35 gpm, Max. Viscosity 1500 CPS, Max. Fluid Temp. 130 Degrees F, Max. Head 36 ft, Max. Head Pressure 16 psi, Self-Priming Yes
