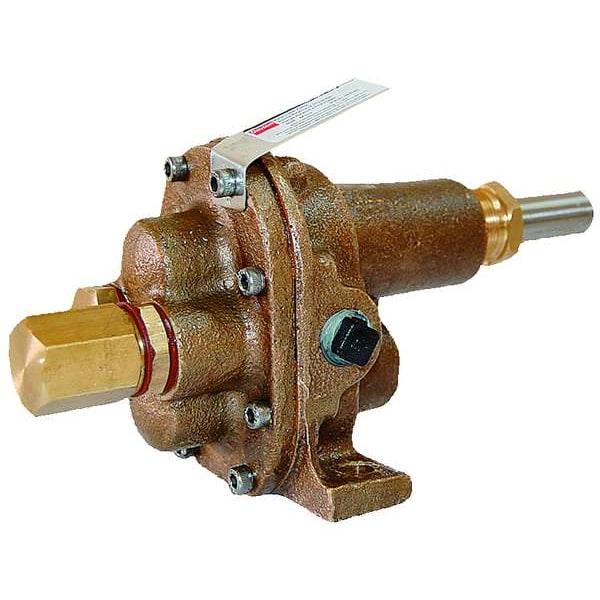

Rotary Gear Pump Head, 1/2 In., 1/3 HP

DAYTON| Zoro #: G0977505| Mfr #: 4KHJ1

$377.65 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0977505 Mfr #: 4KHJ1
Max. Viscosity: 550 SSUDuty Rating: Light
Max. Pressure: 100 psiPump RPM: 1725
Item: Rotary Gear Pump HeadDesign: Pedestal
Temp. Range: -20 Degrees to 210 Degrees FPump Body Material: Bronze
HP @ 25 PSI: 3/4GPM @ Freeflow: 10.8
HP @ Free Flow: 3/4GPM @ 20 PSI: 10.8
GPM @ 25 PSI: 10.7GPM @ 40 PSI: 10.3
GPM @ 50 PSI: 10.6HP @ 50 PSI: 1
GPM @ 60 PSI: 9.9GPM @ 75 PSI: 10.5
GPM @ 80 PSI: 9.5GPM @ 100 PSI: 10.2
HP @ 100 PSI: 1-1/2Gear: Bronze
Relief Valve: WithSeal: PTFE, Kevlar(R) Packing
Shaft Material: 304 Stainless SteelO-Ring Material: Buna N
Height: 3-5/8"Suction Lift: 12.3 ft.
Shaft Dia.: 0.63"HP @ Free Flow @ 1725 RPM: 1-1/2
GPM @ Freeflow @ 1725 RPM: 10.8Port Size: 1/2"
Width: 8-3/8"Shaft Height: 2-5/8"
Length: 4"Suction Lift @ 1725 RPM: 12.3 ft.
HP @ 75 PSI: 1Includes: Carbon Graphite Bushings
Country of Origin (subject to change): India

Product Description

Rotary Gear Pump Head, Duty Rating Light, Pedestal, Pump Body Material Bronze, Port Size 1/2 In., Recommended Motor HP -, Pump RPM 1725, Temp. Range -20 Degrees to 210 Degrees F, Max. Pressure 100 psi, Max. Viscosity 550 SSU, Gear Bronze, Length 4 In., Width 8-3/8 In., Height 3-5/8 In., O-Ring Material Buna N, Relief Valve With, Seal PTFE, Kevlar(R) Packing, Shaft Dia. 0.63 In., Shaft Height 2-5/8 In., Shaft Material 304 Stainless Steel, Includes Carbon Graphite Bushings, GPM @ Freeflow 10.8
