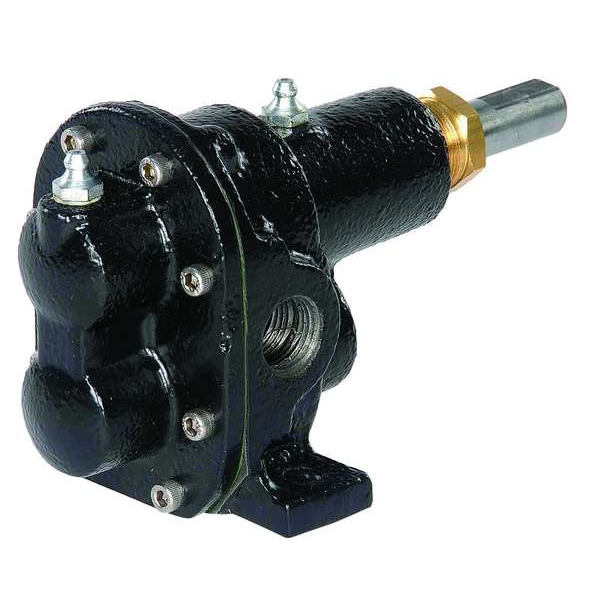

Dayton Rotary Gear Pump Head, 1/4 In., 1/6 HP 4KHK1 - main

Rotary Gear Pump Head, 1/4 In., 1/6 HP

  • Mfr # 4KHK1

  • Zoro # G1384817

product price: $166.99
/ea
Free Shipping & Returns

Key Features

Duty Rating
Light
Design
Pedestal
Pump Body Material
Cast Iron
Port Size
1/4 in
Recommended Motor HP
1/3 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4KHK1
Zoro #
G1384817
UPC #
190735328231
Country of Origin
India

Dimensions

Port Size
1/4 in
Shaft Height
1.875 in
Width
2 3/8 in
Shaft Dia.
0.5 in
Length
5 3/8 in
Height
2 3/4 in
Overall Length
5.4 in
Overall Width
2.5 in
Overall Height
2.8 in
Shaft Length
1 7/8 in
Connection Size
1/4 in
Shaft Outer Diameter
1/2 in

Details

Duty Rating
Light
Design
Pedestal
Pump Body Material
Cast Iron
Recommended Motor HP
1/3 hp
Seal Material
Kevlar, PTFE
Pump RPM
1,725 RPM
Gear
Steel Spur
GPM @ 100 PSI
1.9 gpm
GPM @ 75 PSI
2 gpm
Max. Pressure
100 psi
HP @ Free Flow
0.1667 hp
GPM @ 40 PSI
1.8
Seal
Kevlar(R) Packing, PTFE
Temp. Range
32 Degrees to 280 Degrees F
Relief Valve
Without
HP @ Free Flow @ 1725 RPM
0.1667 hp
O-Ring Material
Viton
GPM @ 60 PSI
1.5
Max. Viscosity
550 SUS
GPM @ 20 PSI
2
HP @ 100 PSI
0.3333 hp
Shaft Material
Steel
GPM @ Freeflow @ 1725 RPM
2.2 gpm
Suction Lift @ 1725 RPM
2.5 ft
HP @ 25 PSI
0.25 hp
GPM @ 50 PSI
2 gpm
GPM @ Freeflow
2.2 gpm
HP @ 75 PSI
0.3333 hp
HP @ 50 PSI
0.25 hp
GPM @ 25 PSI
2.1 gpm
Suction Lift
2.5 ft
GPM @ 80 PSI
1.3
Item
Rotary Gear Pump Head
Seal Type
Packing
Body Material
Cast Iron
Gear Material
Steel
Flow Rate @ 75 psi
2 gpm
Gear Design
Spur
Operating Temperature - Maximum
280 Degrees F
Connection Type
NPT
Flow Rate @ 50 psi
2 gpm
Operating Temperature - Minimum
32 Degrees F
Viscosity - Maximum
550 SUS
Required Horsepower
1/3 hp
Flow Rate @ 25 psi
2.1 gpm
Operating Pressure - Maximum
100 psi
Motor Mounting Type
Pedestal
Flow Rate @ 100 psi
1.9 gpm
Suction Lift - Maximum
2.5 ft

Description

Rotary Gear Pump Head, Body Material Cast Iron, Compatible Motor Frame Not Applicable, Viscosity - Maximum 550 SUS, Suction Lift - Maximum 2.5 ft, Operating Pressure - Maximum 100 psi, Operating Temperature - Maximum 280 Degrees F, Operating Temperature - Minimum 32 Degrees F, Required Horsepower 1/3 hp, Connection Size 1/4 in, Connection Type NPT, Shaft Outer Diameter 1/2 in, Flow Rate @ 100 psi 1.9 gpm, Seal Type Packing, Shaft Length 1 7/8 in, Seal Material Kevlar, PTFE, Gear Design Spur
