  9. Rotary Gear Pump Head, 3/8 In., 1/3 HP
Shop All Pump Heads
Dayton

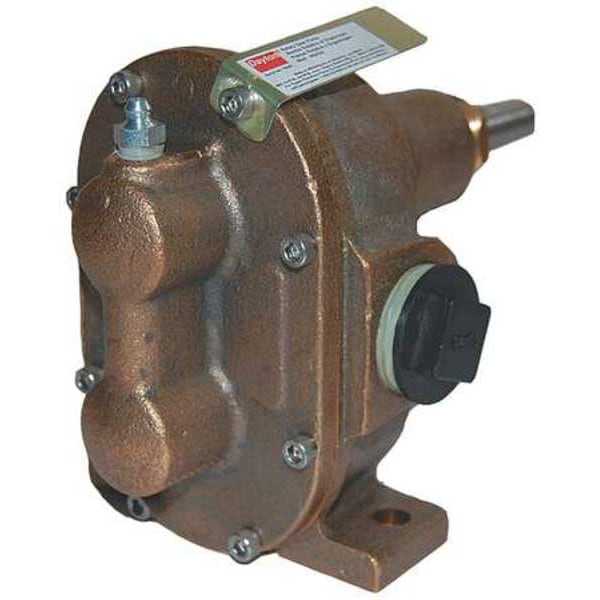

Rotary Gear Pump Head, 3/8 In., 1/3 HP

product price: $244.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Duty Rating Light
  • Design Pedestal
  • Pump Body Material Bronze
  • Port Size 3/8 in
  • Recommended Motor HP 1 hp
See all product information

Product Information

  • Brand Dayton
  • MFR # 4KHG6
  • Zoro # G3202656
  • UPC #
    190735328019
  • Country of Origin India
  • Category Pump Heads

Dimensions

Port Size 3/8 in
Height 4 in
Shaft Dia. 0.63 in
Width 3 5/8 in
Shaft Height 2.625 in
Length 6 5/8 in
Overall Length 6.6 in
Overall Height 4 in
Overall Width 3.8 in
Connection Size 3/8 in
Shaft Outer Diameter 5/8 in
Shaft Length 2 5/8 in

Details

Duty Rating Light
Design Pedestal
Pump Body Material Bronze
Recommended Motor HP 1 hp
Seal Material Kevlar, PTFE
Pump RPM 1,725 RPM
Gear Bronze
Item Rotary Gear Pump Head
GPM @ Freeflow @ 1725 RPM 7 gpm
HP @ 50 PSI 1 hp
Max. Viscosity 550 SUS
Suction Lift 7.9 ft
Shaft Material 304 Stainless Steel
Suction Lift @ 1725 RPM 7.9 ft
GPM @ 60 PSI 6.8 gpm
GPM @ 25 PSI 6.9 gpm
GPM @ 50 PSI 6.8 gpm
GPM @ 20 PSI 6.9 gpm
HP @ 100 PSI 1.5 hp
HP @ 25 PSI 0.75 hp
Max. Pressure 100 psi
GPM @ 80 PSI 6.8 gpm
HP @ Free Flow @ 1725 RPM 0.75 hp
GPM @ 75 PSI 6.7 gpm
GPM @ Freeflow 7 gpm
HP @ 75 PSI 1 hp
GPM @ 40 PSI 6.9 gpm
Seal Kevlar(R) Packing, PTFE
Temp. Range -20 Degrees to 210 Degrees F
Relief Valve Without
HP @ Free Flow 0.75 hp
GPM @ 100 PSI 6.6 gpm
Seal Type Packing
Body Material Bronze
Required Horsepower 1 1/2 hp
Flow Rate @ 100 psi 6.5 gpm
Flow Rate @ 50 psi 6.8 gpm
Operating Temperature - Maximum 210 Degrees F
Gear Design Spur
Suction Lift - Maximum 7.9 ft
Flow Rate @ 25 psi 6.9 gpm
Operating Pressure - Maximum 100 psi
Flow Rate @ 75 psi 6.7 gpm
Motor Mounting Type Pedestal
Operating Temperature - Minimum -20 Degrees F
Connection Type NPT
Viscosity - Maximum 550 SUS
Gear Material Bronze

Description

Rotary Gear Pump Head, Body Material Bronze, Compatible Motor Frame Not Applicable, Viscosity - Maximum 550 SUS, Suction Lift - Maximum 7.9 ft, Operating Pressure - Maximum 100 psi, Operating Temperature - Maximum 210 Degrees F, Operating Temperature - Minimum -20 Degrees F, Required Horsepower 1 1/2 hp, Connection Size 3/8 in, Connection Type NPT, Shaft Outer Diameter 5/8 in, Flow Rate @ 100 psi 6.5 gpm, Seal Type Packing, Shaft Length 2 5/8 in, Seal Material Kevlar, PTFE, Gear Design Spur
