Shop DAYTON

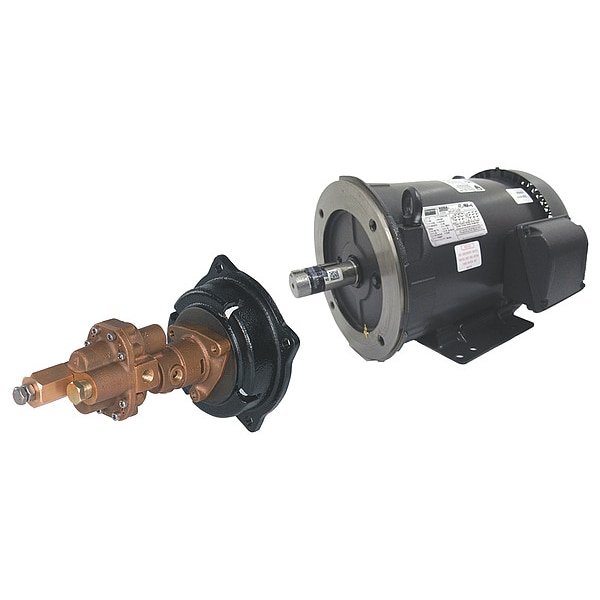

Rotary Pump, Close, 125psi, Bronze, 3HP

  • Mfr # 41TK22

  • Zoro # G2577053

product price:
$
1,518.99
/ea
Additional $50.00 delivery surcharge applies per item.
See details

Key Features

Pump Type
Close Coupled
HP
3 hp
Voltage
230/460
Motor Frame
182TC/184TC
Temp. Range
-20 Degrees to 210 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
41TK22
Zoro #
G2577053
UPC #
00194484255664
Country of Origin
Multiple

Dimensions

Width (In.)
13.6667 in
Length (In.)
9.25 in
Port Size (In.)
1 in
Height (In.)
24.125 in
Overall Height
24.1 in
Overall Length
9.3 in
Overall Width
13.7 in
Media Intake Connection Size
1 in
Manufacturer Warranty Length
1 yr
Discharge Diameter
1 in
Inlet Diameter
1 in
For Motor Frame Size
182TC, 184TC
Wire Rope Length
9.3 in
Length
9.3 in

Details

Item
Rotary Gear Pump
Pump Type
Close Coupled
HP
3 hp
Voltage
230/460
Motor Frame
182TC/184TC
Temp. Range
-20 Degrees to 210 Degrees F
GPM @ Freeflow
24.8 gpm
Phase
Three
Max. RPM
1,725 RPM
Amps AC
7.6/3.8 A
Motor Enclosure
Totally Enclosed Fan Cooled
GPM @ 100 PSI
23.9 gpm
Relief Valve
Yes
Max. Pressure (PSI)
125 psi
GPM @ 20 PSI
24.7 gpm
Amps
7.6/3.8
Suction Lift (Ft.)
19.5 ft
GPM @ 40 PSI
24.5 gpm
GPM @ 60 PSI
24.3 gpm
Shaft Material
Stainless Steel
GPM Max.
24.8 gpm
Max. Viscosity (SSU)
500 SUS
Max. Temp. (F)
280 Degrees F
Body Material
Bronze
Bushing
Carbon Graphite
Gear Material
Polyphenylene Sulfide
Seal
Buna N Mechanical
O-Ring
Buna N
Includes
36VF22, 4KHC4
Assembled/Unassembled
Unassembled
Motor Included
36VF22
Pump Head Included
4KHC4
O-Ring Material
Buna-N
Viscosity - Maximum
500 SUS
Nameplate Voltage
230/460V AC
Operating Temperature - Maximum
210 Degrees F
Flow Rate - Maximum
24.8 gpm
Seal Type
Mechanical
Flow Rate @ 60 psi
24.3 gpm
Flow Rate @ 100 psi
23.9 gpm
Flow Rate @ 40 psi
24.5 gpm
Seal Material
Buna-N
Suction Lift -Maximum
19.5 ft
Motor Mounting Type
Close Coupled
Operating Temperature - Minimum
-20 Degrees F
Bushing Material
Carbon Graphite
Flow Rate @ 20 psi
24.7 gpm
Motor Speed - Maximum
1,725 RPM
Operating Pressure - Maximum
125 psi
Compatible Motor Frame
182TC/184TC
Horsepower - Maximum
3 hp
Gear Design
Spur
Chemical Compatibility
Adhesive, Ammonia Liquid, Synthetic Oil
Gear Pump Type
External
Drive Type
Direct Drive
Series
B-Series
Standards
CE, CSA, UL
Feet of Head - Maximum
288 ft

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Three, Nameplate Voltage 230/460V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 3 hp, Operating Temperature - Minimum -20 Degrees F, Operating Temperature - Maximum 210 Degrees F, Media Intake Connection Size 1 in, Gear Design Spur, Gear Material Polyphenylene Sulfide, Suction Lift -Maximum 19.5 ft, Flow Rate - Maximum 24.8 gpm, Seal Type Mechanical, Seal Material Buna-N
