Shop DAYTON

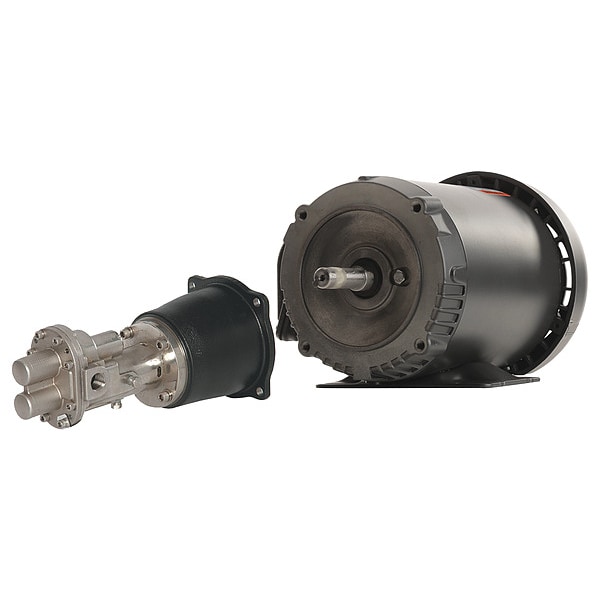

Rotary Pump, Close, 125psi, 3.5Lift, 1HP

  • Mfr # 41TK15

  • Zoro # G2576968

product price:  $1,139.99
/ea
Free Shipping & Returns

Key Features

Pump Type
Close Coupled
HP
1 hp
Voltage
230/460
Height (In.)
8.75 in
Temp. Range
32 Degrees to 280 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
41TK15
Zoro #
G2576968
UPC #
00194484255596
Country of Origin
Multiple

Dimensions

Height (In.)
8.75 in
Width (In.)
11 in
Port Size (In.)
3/8 in
Length (In.)
22.75 in
Overall Height
8.8 in
Overall Length
22.8 in
Overall Width
11 in
Manufacturer Warranty Length
1 yr
Media Intake Connection Size
3/8 in
For Motor Frame Size
56C
Discharge Diameter
3/8 in
Inlet Diameter
3/8 in

Details

Item
Rotary Gear Pump
Pump Type
Close Coupled
HP
1 hp
Voltage
230/460
Temp. Range
32 Degrees to 280 Degrees F
Body Material
316 Stainless Steel
Motor Enclosure
Totally Enclosed Fan Cooled
Max. RPM
1,725 RPM
GPM @ 20 PSI
4.5 gpm
GPM @ 60 PSI
4 gpm
Motor Frame
56C
Bushing
Carbon Graphite
GPM @ Freeflow
4.8 gpm
GPM Max.
4.8 gpm
GPM @ 100 PSI
4.4 gpm
O-Ring
Viton
GPM @ 40 PSI
4.2 gpm
Seal
Type 21 Mechanical With Stainless Steel, Viton
Max. Pressure (PSI)
125 psi
Amps
3.3/1.6
Gear Material
Polyphenylene Sulfide
Amps AC
3.3/1.6 A
Max. Viscosity (SSU)
500 SUS
Suction Lift (Ft.)
3.5 ft
Relief Valve
No
Shaft Material
316 Stainless Steel
Phase
Three
Max. Temp. (F)
280 Degrees F
Includes
36VF82, 4KHN7
Assembled/Unassembled
Unassembled
Motor Included
36VF82
Pump Head Included
4KHN7
O-Ring Material
Viton
Seal Type
Mechanical
Gear Design
Spur
Horsepower - Maximum
1 hp
Operating Temperature - Maximum
280 Degrees F
Flow Rate @ 20 psi
4.5 gpm
Suction Lift -Maximum
3.5 ft
Motor Speed - Maximum
1,725 RPM
Flow Rate @ 100 psi
4.4 gpm
Bushing Material
Carbon Graphite
Operating Pressure - Maximum
125 psi
Compatible Motor Frame
56C
Nameplate Voltage
230/460V AC
Motor Mounting Type
Close Coupled
Flow Rate @ 40 psi
4.2 gpm
Viscosity - Maximum
500 SUS
Seal Material
Viton
Flow Rate @ 60 psi
4 gpm
Operating Temperature - Minimum
32 Degrees F
Flow Rate - Maximum
4.8 gpm
Series
B-Series
Standards
CSA, UL
Feet of Head - Maximum
288 ft
Chemical Compatibility
Diesel, Engine Oil, Ethylene Glycol, Fuel Oil, Water
Drive Type
Direct Drive
Gear Pump Type
External

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Three, Nameplate Voltage 230/460V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 3/8 in, Gear Design Spur, Gear Material Polyphenylene Sulfide, Suction Lift -Maximum 3.5 ft, Flow Rate - Maximum 4.8 gpm, Seal Type Mechanical, Seal Material Viton
