Dayton

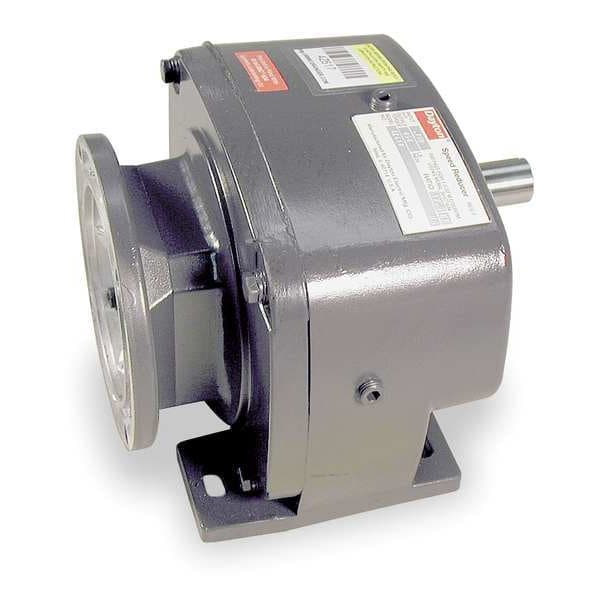

Speed Reducer, C-Face, 56C, 31:1
- Zoro #: G1222277
- Mfr #: 4Z616
Hover or click to zoom Tap to zoom
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $694.67
Dayton #4Z616 Specifications
- Zoro #: G1222277
- Mfr #: 4Z616
- Item: Speed Reducer
- Nominal Ratio: 31:1
- Input RPM: 1750 rpm
- Bore Dia.: 5/8"
- Nominal Output RPM: 56 RPM
- Standards: AGMA
- Output Torque @ 1 HP: 816 in.-lb.
- Overhung Load: 712 lb
- Shaft Orientation: Parallel/Inline
- Solid/Hollow Output Shaft: Solid
- Output Torque @ 1/4 HP: 272 in-lb
- Output Torque @ 3/4 HP: 816 in-lb
- Output Torque @ 1/2 HP: 544 in-lb
- Output Torque @ 1/3 HP: 363 in-lb
- Dimension U: 1 in
- Gear Type: Helical
- Frame: 56c
- Duty: Standard
- Max. Output Torque: 816 in-lb
- Number of Stages: 1
- Housing Material: Cast Aluminum
- Output Shaft Dia.: 1 in
- Seal Type: Double Lip
- Single/Double Output/Universal: Single Output
- Gear Material: Hardened and Ground Steel
- Rotation: Forward/Reversible
- Output Shaft Height: 4 7/8 in
- Reducer Model No.: 84402
- Output Torque @ 1/40 HP: 3600 in.-lb.
- Pinion Material: Hardened Steel
- Lubrication: Klubersynth UH1 6-460
- Max. Input HP: 0.75 hp
- Bearings: Ball
- Speed Reducer Type: C-Face
- Finish: Powdered Epoxy Paint
- Nominal Output rpm: 56 rpm
- Country of Origin (subject to change): United States
Description
Speed Reducer, C-Face, Parallel/Inline Shaft Orientation, Standard Duty, 1,750 RPM Input RPM, 56 RPM Nominal Output RPM, Bore Dia. 5/8 in, 56C Frame, Overhung Load 712 lb, 31:1 Nominal Ratio, Max. Input HP 0.75 hp, Max. Output Torque 816 in-lb, Number of Stages 1, Forward/Reversible Rotation, Ball Bearings, Hardened Steel Pinion Material, Helical Gear Type, Cast Aluminum Housing Material, Single Output, Output Shaft Dia. 1 in, Output Shaft Height 4 7/8 in
Restrictions and Compliance
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
