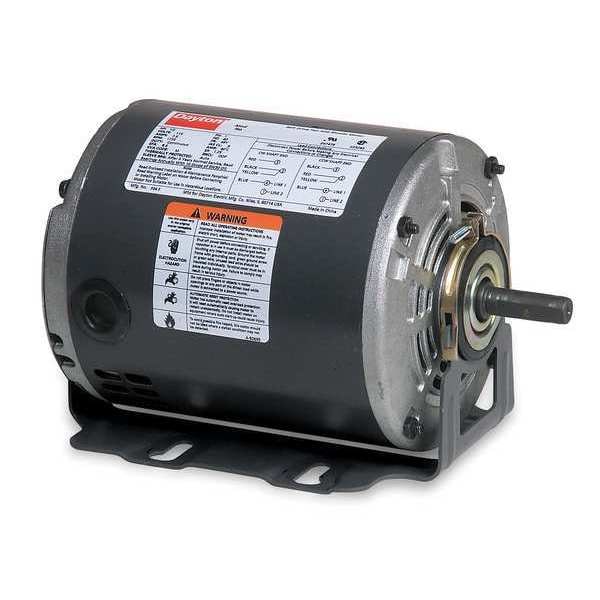

Split-Phase Belt Drive Motor, 1/2 HP, 48Z Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 4K259
  • Zoro # G1052904
product price:
$
278.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4K259
Zoro #
G1052904
UPC #
190735327517
Country of Origin
Multiple
Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC, 208V AC to 230V AC
Frame
48Z
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Ins. Class
B
Motor Shaft Design
Flat
Motor Frame Material
Rolled Steel
Max. Ambient Temp.
104 Degrees F
Duty
Continuous
Full Load Amps
8.6/4.2-4.3 A
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
All Angle
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Frame Material
Steel
Ring to Ring Center
2 1/2 in
Duty Cycle
Continuous
Drive Type
Belt Drive
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.25
Product Type
Fan and Blower Motor
Duty Rating
Commercial
Shaft Design
Flat
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
8.6/4.2-4.3 A
Number of Speeds
1
Insulation Class
B
Bearing Type
Ball
Mounting Position
All Angle
Application
Fan/Blower
Frequency
60 Hz

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 7/8 in
Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/2 in
Body Diameter
5.6 in
Frame Size
48Z
Shaft Diameter
1/2 in
Resilient Ring Diameter
2 1/2 in

Description

The DAYTON - 4K259 is a Belt Drive Motor designed for HVAC/R applications and belt drive fan/blower use. This motor is engineered to meet specific requirements with a power capacity of 3 HP. Operating at a speed of 1,750 RPM, it ensures compatibility with various driven systems.
Key Features:
• Voltage Compatibility: Can operate safely with an electrical input range of 115/200-230V AC, 115/208-230V AC, 115V AC, and 208-230V AC.
• Open Dripproof Motor Enclosure Design: Provides protection while allowing better cooling.
• Maximum Ambient Temperature of operation is up to 104 Degrees F.
• Auto Thermal Protection feature prevents overheating by shutting down when excessive heat is detected
• Motor Service Factor rating indicating overcapacity operation without overheating stands at1.25
• Motor Bearings
• Nameplate RPM (maximum speed) stands at1725
• Duty Cycle is continuous, allowing the compressor air filter to operate non-stop in high-demand settings.
• Motor Mounting Type refers specifically to Cradle Base design structure
• Motor Mounting Position allows for all-angle installation
• Complies with CSA Certified and UL Recognized standards
