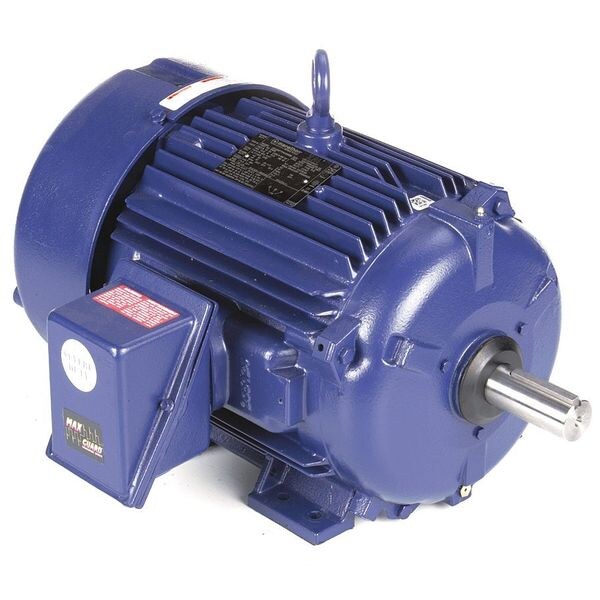

Three-Phase Severe Duty Motor, 20 HP, 256T Frame, 460V AC Voltage, 3,540 Nameplate RPM

  • Mfr # 256TTFCD6501

  • Zoro # G9943823

product price:
$
2,556.99
/ea
Additional $105.00 delivery surcharge applies per item.
See details

Key Features

HP
20
Nameplate RPM
3,540
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.7 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
256TTFCD6501
Zoro #
G9943823
UPC #
-
Country of Origin
Mexico
Item
Severe Duty Motor
HP
20
Nameplate RPM
3,540
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.7 A
Frame
256T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.1 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Includes
Max Guard Insulation
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Weight
375 lb
Inverter Rated
Yes
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Temp. Code
T2B
Hazardous Location Class
1 C,D / 2 F,G
Insulation Class
H
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Nameplate Voltage @ 50 Hz
380V AC, 460V AC
Nameplate RPM @ 50 Hz
1,190/980 RPM
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
23.7 A
Frequency
60 Hz
Mounting Position
Horizontal
Product Type
Severe Duty Motor
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
Inverter Rating
Inverter Rated

Description

Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 3,540, Frame 256T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Listed
