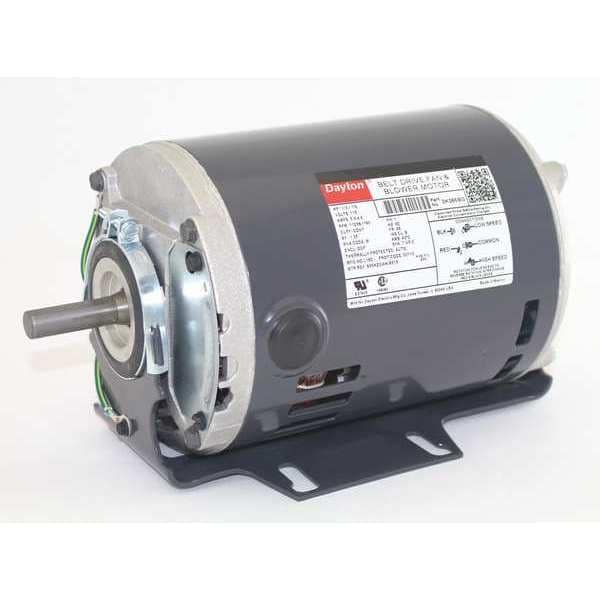

Dayton Split-Phase Belt Drive Motor, 1/3, 1/9 HP, 48 Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM 3K386 - main

Split-Phase Belt Drive Motor, 1/3, 1/9 HP, 48 Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM

  • Mfr # 3K386

  • Zoro # G0742183

product price:  $292.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3, 1/9
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3K386
Zoro #
G0742183
UPC #
190735290248
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Length Less Shaft
9 15/16 in
Resilient Ring Dia.
2 1/4 in
Shaft Length
1 1/2 in
Overall Length
11 7/16 in
Body Dia.
5 5/8 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3, 1/9
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
48
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.35
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Bearings
Ball
Standards
CSA Certified (258501), UL Recognized (E37403)
Footnotes
66,70,34
Duty
Continuous
Ring to Ring Center
8 3/8 in
Motor Shaft Design
Flat
Hz
60 Hz
Full Load Amps
5.9/4.8 A
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Frame Material
Rolled steel
Nominal Efficiency
58.1 %
Includes
1/2 to 5/8 in Diameter Shaft Bushing, 3/16 x 3/16 x 1 1/4 in Shaft Key
Ins. Class
B
Duty Cycle
Continuous

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 1/9 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 5.9/4.8 A Full Load Amps, 48 Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
