Dayton

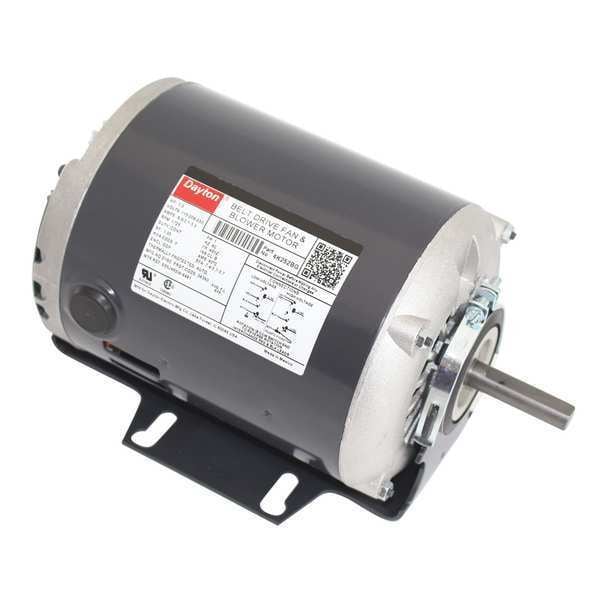

Split-Phase Belt Drive Motor, 1/3 HP, 48YZ Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/3
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
See full product details
$158.16

Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Dayton #4K252 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/3
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
  • Frame: 48YZ
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 1/2 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.35
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Overall Length: 10 1/4 in
  • Ring to Ring Center: 8 1/16 in
  • Duty: Continuous
  • Shaft Length: 1 7/8 in
  • Motor Shaft Rotation: CW/CCW
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Shaft Design: Flat
  • Length Less Shaft: 8 3/8 in
  • Hz: 60
  • Frame Material: Steel
  • Motor Bearings: Ball
  • Nominal Efficiency: 56.4 %
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Ins. Class: B
  • Motor Mounting Position: All Angle
  • Full Load Amps: 6.6/3.1-3.3
  • Resilient Ring Dia.: 2 1/2 in
  • Body Dia.: 5 5/8 in
  • Motor Frame Material: Rolled Steel
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Multiple

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 6.6/3.1-3.3 Full Load Amps, 48YZ Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in
