Dayton

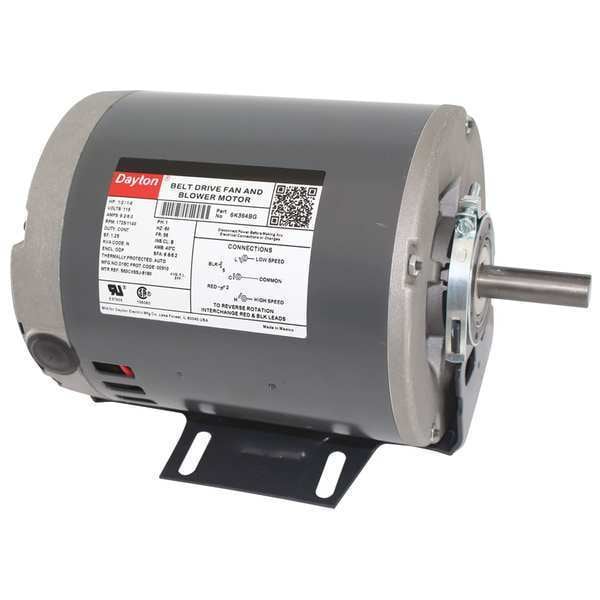

Split-Phase Belt Drive Motor, 1/2, 1/4 HP, 56 Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM

Dayton Split-Phase Belt Drive Motor,  1/2,  1/4 HP,  56 Frame,  115V AC Voltage,  1,725/1,140 Nameplate RPM 6K394
Tap to zoom
Hover or click to zoom
$232.74
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.

Total: $232.74

Dayton #6K394 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/2, 1/4
  • No. of Speeds: 2
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725/1,140
  • Voltage: 115V AC
  • Frame: 56
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.25
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Max. Ambient Temp.: 40 Degrees C
  • Ring to Ring Center: 8 7/16 in
  • Standards: CSA Certified (258501), UL Component Recognized (E37403)
  • Includes: 3/16 x 3/16 x 1 1/4 in Shaft Key
  • Body Dia.: 5 5/8 in
  • Motor Bearings: Ball
  • Motor Shaft Rotation: CW/CCW
  • Motor Frame Material: Rolled Steel
  • Full Load Amps: 9.2/6.0
  • Motor Mounting Position: All Angle
  • Length Less Shaft: 10 1/8 in
  • Shaft Length: 1 7/8 in
  • Overall Length: 10 3/4 in
  • Motor Shaft Design: Keyed
  • Ins. Class: B
  • Footnotes: 66
  • Resilient Ring Dia.: 2 1/2 in
  • Hz: 60
  • Duty: Continuous
  • Frame Material: Rolled steel
  • Nominal Efficiency: 61.4 %
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Multiple

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4; 1/2 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, 9.2/6.0 Full Load Amps, 56 Frame, 60 Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in
