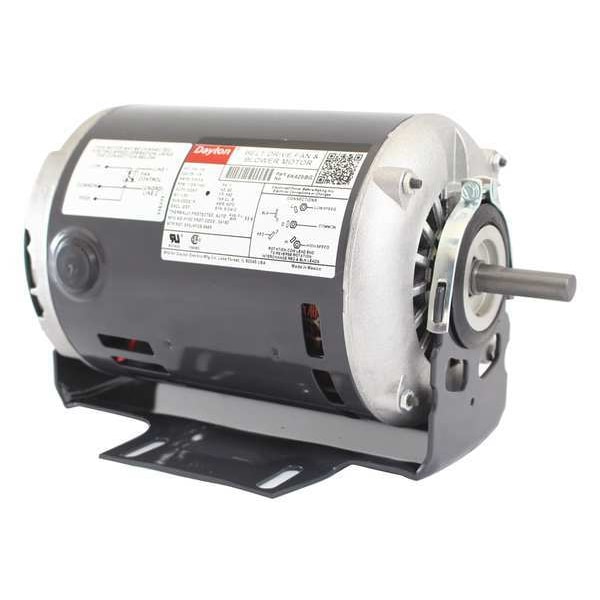

Dayton Split-Phase Belt Drive Motor, 1/4, 1/8 HP, 56Z Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM 6K425 - main

Split-Phase Belt Drive Motor, 1/4, 1/8 HP, 56Z Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM

  • Mfr # 6K425

  • Zoro # G2491973

product price:  $291.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/4, 1/8
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6K425
Zoro #
G2491973
UPC #
190735365984
Country of Origin
Multiple

Dimensions

Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
8 15/16 in
Overall Length
10 7/16 in
Body Dia.
5 5/8 in
Shaft Length
1 1/2 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/4, 1/8
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
56Z
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.35
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Max. Ambient Temp.
104 Degrees F
Duty
Continuous
Motor Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Flat
Standards
CSA Certified, UL Recognized
Full Load Amps
5.9/3.8 A
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Ring to Ring Center
8 1/16 in
Ins. Class
B
Motor Bearings
Ball
Includes
1/2 to 5/8 in Diameter Shaft Bushing, 3/16 x 3/16 x 1 1/4 in Shaft Key
Motor Mounting Position
All Angle
Frame Material
Steel
Hz
60 Hz
Nominal Efficiency
53.9 %
Duty Cycle
Continuous

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp, 1/8 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 5.9/3.8 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
