Shop DAYTON

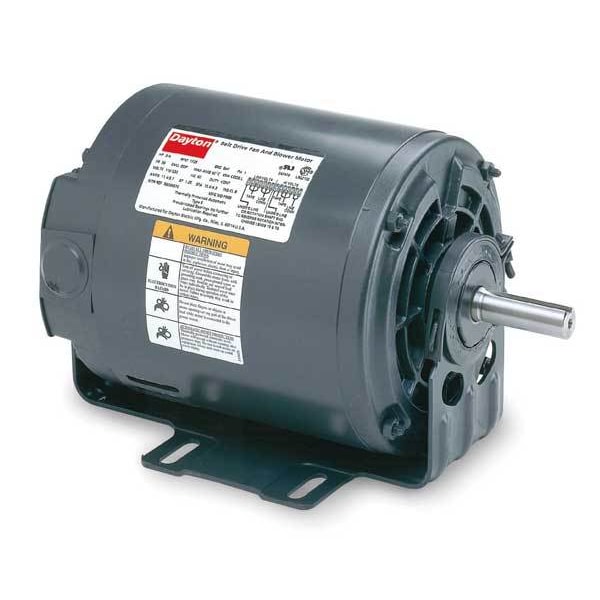

Split-Phase Belt Drive Motor, 1/3, 1/6 HP, 56Z Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM

  • Mfr # 6K426

  • Zoro # G1394032

product price:
$
408.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3, 1/6
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K426
Zoro #
G1394032
UPC #
190735365991
Country of Origin
Multiple

Dimensions

Shaft Dia.
1/2 in
Length Less Shaft
9 5/8 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
6 7/16 in
Shaft Length
1 1/2 in
Resilient Ring Diameter
2 1/2 in
Body Diameter
6.4 in
Frame Size
56Z
Shaft Diameter
1/2 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3, 1/6
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
56Z
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.35
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Ins. Class
B
Ring to Ring Center
9 1/8 in
Standards
CE, CSA Certified (247478), UL Recognized (E37403)
Motor Frame Material
Rolled Steel
Frame Material
Steel
Duty
Continuous
Motor Shaft Rotation
CW/CCW
Footnotes
45,66
Motor Shaft Design
Flat
Hz
60 Hz
Full Load Amps
6.1/3.8 A
Motor Bearings
Ball
Includes
1/2 to 5/8 in Diameter Shaft Bushing, 3/16 x 3/16 x 1 1/4 in Shaft Key
Motor Mounting Position
All Angle
Max. Ambient Temp.
104 Degrees F
Duty Cycle
Continuous
Product Type
Fan and Blower Motor
Shaft Design
Flat
Mounting Position
All Angle
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Application
Fan/Blower
Drive Type
Belt Drive
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Duty Rating
Commercial
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.35
Full Load Current @ 60 Hz
6.1/3.8 A

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 6.1/3.8 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
