Dayton

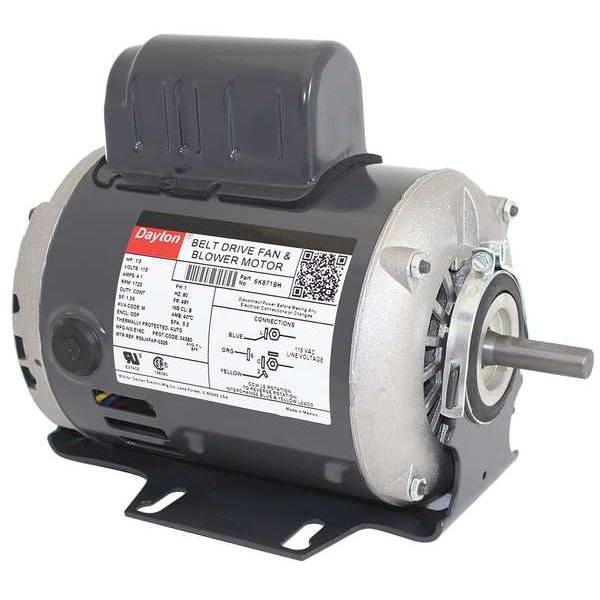

Split-Phase Start/Capacitor-Run Belt Drive Motor, 1/3 HP, 48 Frame, 115V AC Voltage
- Zoro #: G2001413
- Mfr #: 6K871
Hover or click to zoom Tap to zoom
Help us improve our
product images
Key Features
- Item: Belt Drive Motor
- Motor Design: Split-Phase
- Motor Enclosure Design: Open Dripproof
- HP: 1/3
- No. of Speeds: 1
- RPM Range: 1,701-1,800
- Nameplate RPM: 1,725
- Voltage: 115V AC
$186.55
Subtotal: $186.55
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Dayton #6K871 Specifications
- Zoro #: G2001413
- Mfr #: 6K871
- UPC #: 190735366615
- Item: Belt Drive Motor
- Motor Design: Split-Phase
- Motor Enclosure Design: Open Dripproof
- HP: 1/3
- No. of Speeds: 1
- RPM Range: 1,701-1,800
- Nameplate RPM: 1,725
- Voltage: 115V AC
- Frame: 48
- Motor Mounting Type: Cradle Base
- Shaft Dia.: 1/2 in
- Motor Thermal Protection: Auto
- Motor Service Factor: 1.35
- Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
- Phase: Single
- Motor Application: HVAC/R
- Motor Sub Application: Belt Drive Fan/Blower
- Includes: Run Capacitor
- Nominal Efficiency: 68.3 %
- Motor Mounting Position: All Angle
- Shaft Length: 1 1/2 in
- Ring to Ring Center: 7 15/16 in
- Ins. Class: B
- Motor Frame Material: Rolled Steel
- Body Dia.: 5 5/8 in
- Motor Shaft Rotation: CW/CCW
- Frame Material: Rolled steel
- Resilient Ring Dia.: 2 1/4 in
- Overall Length: 9 7/8 in
- Motor Bearings: Ball
- Max. Ambient Temp.: 40 Degrees C
- Full Load Amps: 4.1
- Length Less Shaft: 8 3/8 in
- Footnotes: 77
- Duty: Continuous
- Standards: CSA Certified (258501), UL Recognized (E37403)
- Hz: 60
- Motor Shaft Design: Flat
- Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
- Duty Cycle: Continuous
- Country of Origin (subject to change): Multiple
Description
Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.1 Full Load Amps, 48 Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in, Shaft Length 1 1/2 in
