Shop DAYTON

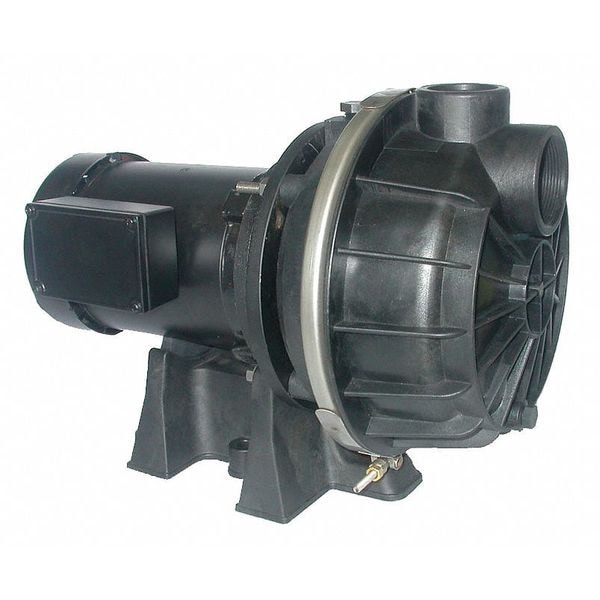

Sprinkler Pump, 3/4 hp, 208 to 240/480V AC, 3 Phase

  • Mfr # 5UPW5

  • Zoro # G1025035

product price:  $714.99
/ea
Free Shipping & Returns

Key Features

Pressure Pump Type
Centrifugal Pump
Inlet
2"
HP - Pumps
3/4 hp
Outlet
1-1/2"
Voltage - Pumps
208 to 240/480V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UPW5
Zoro #
G1025035
UPC #
190735352007
Country of Origin
China

Dimensions

Outlet Size - Pumps
1-1/2 in NPT
Inlet Size - Pumps
2 in NPT
Height
11 13/16 in
Manufacturers Warranty Length
1 yr
Length
18 5/8 in
Width
6 9/16 in
Overall Width
10.43 in
Overall Height
12.37 in
Overall Length
18.7 in
Compatible Intake Pipe Size
2 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1 1/2 in
Discharge Diameter
1 1/2 in
Inlet Diameter
2 in
Motor Frame Size
56J
Wire Rope Length
18.7 in

Details

Item
Sprinkler Pump
Pressure Pump Type
Centrifugal Pump
Inlet
2"
HP - Pumps
3/4 hp
Outlet
1-1/2"
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
HP
3/4
Wetted Materials
SS,Viton,Carbon,Ceramic., Thermoplastic
Voltage
208-230/460
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Suction Lift
25 ft
Inlet (In.)
2
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Max. Pressure - Pumps
42 psi
Best Efficiency GPM @ Head
32 @ 60 ft
Housing Material - Pumps
Thermoplastic
Amps
5.2-5.0/2.5
GPM @ 25 PSI
34
GPM @ 15 PSI
46
For Use With
Nonflammable Liquids Compatible with Pump Component Materials
Agency Compliance
Motor Only CSA
Max. Specific Gravity
1
GPM @ 35 PSI
21
GPM @ 10 PSI
49
Port Rotation
90 Degrees Increments
Frame
56J
Max. Head
97 ft
GPM @ 20 PSI
40
Phase
Three
Housing Material
Thermoplastic
Impeller Type
Closed
Bearing Type
Double Shielded Pre Lubricated Ball
Impeller Material
Noryl
Includes
Manual
Stages
1
Max. Pressure
42 psi
Motor Enclosure
Totally Enclosed Fan Cooled
GPM @ 40 PSI
15
Hz
60
GPM @ 30 PSI
28
Duty
Continuous
Features
Stainless Steel Fasteners and Inserts
Motor Type
3-Phase
Max. Case Pressure
80 psi
Inlet Pressure
38 psi
Standards
CUS
Shaft Material
Stainless Steel
Shut Off Pressure (Maximum)
42 psi
Motor Frame Designation
56J
Maximum Flow Rate
49 gpm
Flow Rate @ 20 psi
40 gpm
Maximum RPM
3,450 RPM
Suction Lift (Maximum)
20 ft
Wetted Material
Carbon, Ceramic, Stainless Steel, Thermoplastic, Viton
Flow Rate @ 10 psi
49 gpm
Discharge Type
NPT
Specific Gravity (Maximum)
1
Best Efficiency Head
60 ft
Case Pressure (Maximum)
80 psi
For Use With Potable Systems
No
Compatible with Media Type
Non-Flammable Liquids
Frequency
60 Hz
Motor Ambient Temperature (Maximum)
104 Degrees F
Best Efficiency Flow
32 gpm
Thermal Overload Protection
No
Duty Cycle
Continuous
Flow Rate @ 40 psi
15 gpm
Flow Rate @ 15 psi
46 gpm
Intake Type
NPT
Discharge Rotation
90 Degrees Increments
Pump Housing Material
Thermoplastic
Priming
Self-Priming
Nameplate Voltage
208-230/460V AC
Maximum Feet of Head
97 ft
Horsepower
3/4 hp
Flow Rate @ 30 psi
28 gpm
Pump Drive Configuration
Frame-Mounted
Shaft Seal Material
Carbon/Ceramic/FKM/Stainless Steel
Pump Design
End Suction
Shut Off Pressure - Maximum
42 psi
Number of Stages
1
Flow Rate (Maximum)
49 gpm
Media Temperature - Minimum
40 Degrees F
Full Load Current
5.2-5.0/2.5A
Media Temperature - Maximum
180 Degrees F
Chemical Compatibility
Non-Flammable Liquids
Feet of Head (Maximum)
97 ft
Ambient Temperature - Maximum
104 Degrees F
Pumping Application
Irrigation, Sprinkler Systems, Spraying Systems
Electrical Connection Type
Hardwired
Ambient Temperature - Minimum
40 Degrees F
Motor Design
Three-Phase
Case Pressure - Maximum
80 psi

Description

Sprinkler Pump, Phase Three, Pump Housing Material Plastic, Horsepower 3/4 hp, Nameplate Voltage 208-240/480V AC, Suction Lift (Maximum) 20 ft, Flow Rate @ 10 psi 49 gpm, Flow Rate @ 20 psi 40 gpm, Maximum Feet of Head 97 ft, Shut Off Pressure (Maximum) 42 psi, Compatible Intake Pipe Size 2 in, Compatible Discharge Pipe Size 1 1/2 in, Intake Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 30 psi 28 gpm, Flow Rate @ 40 psi 15 gpm, Priming Self-Priming
