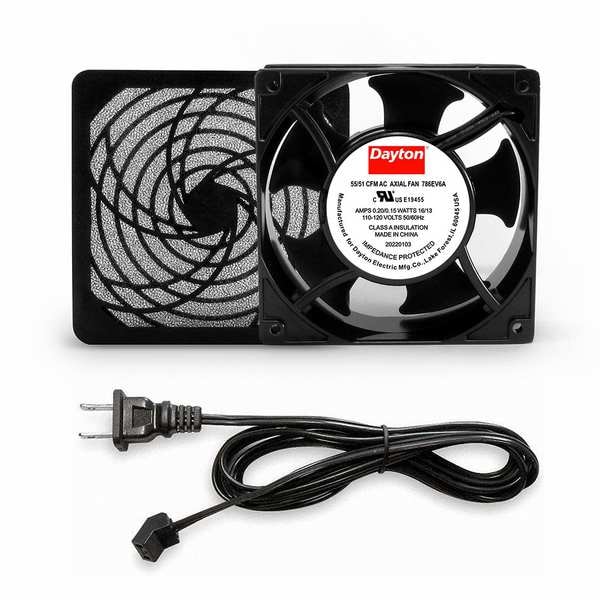

Dayton Square Axial Fan Kit, 120V AC, Cast Aluminum, 4 3/4 in W. 786EV6 - main

Square Axial Fan Kit, 120V AC, Cast Aluminum, 4 3/4 in W.

  • Mfr # 786EV6

  • Zoro # G005340535

product price: $58.29
/ea

Key Features

Blade Material
Polycarbonate
CFM @ 0.000-In. SP
55/51 cfm
Depth
1 in
Height
4 3/4 in
Housing Material
Cast Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
786EV6
Zoro #
G005340535
UPC #
-
Country of Origin
China

Dimensions

Depth
1 in
Height
4 3/4 in
Width
4 3/4 in
Fan Cord Length
72 in

Details

Blade Material
Polycarbonate
CFM @ 0.000-In. SP
55/51 cfm
Housing Material
Cast Aluminum
Watts
16/13 W
Includes
Cord Set with NEMA 1-15 Plug, Filter, Plastic Guard
Voltage
120V AC
Hz
50/60 Hz Hz
IP Rating
20
Mounting Position
Vertical or Horizontal
Standards
cULus Recognized
Fan Shape
Square
Environmental Applications
Equipment Cooling
RPM
2000/1900 RPM
Motor Insulation
Class A
Sound Level
32/31
Motor Design
Shaded Pole
Thermal Protection
Impedance Protected
Color
Black
Item
Square Axial Fan Kit
Bearing Type
Ball
Amps
0.20/0.15 A
Electrical Connection - Fans
Terminals
Mounting Eye O.C.
4 1/8 in
Max. Ambient Temp.
150 Degrees F

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 3/4 in, Depth 1 in, Width 4 3/4 in, Fan Cord Length 72 in, CFM @ 0.000-In. SP 51 cfm, 55 cfm, Watts 16/13 W, Voltage 120V AC, 60/50 Hz Hz, 0.2/0.15 A Amps, Electrical Connection - Fans Terminals, Sound Level 32 dBA, IP Rating IP20, Mounting Position Horizontal/Vertical, Bearing Type Ball, 1,900 RPM, 2,000 RPM RPM, Motor Design Shaded Pole, Motor Insulation A, Thermal Protection Yes, Max. Ambient Temp. 150 Degrees F
