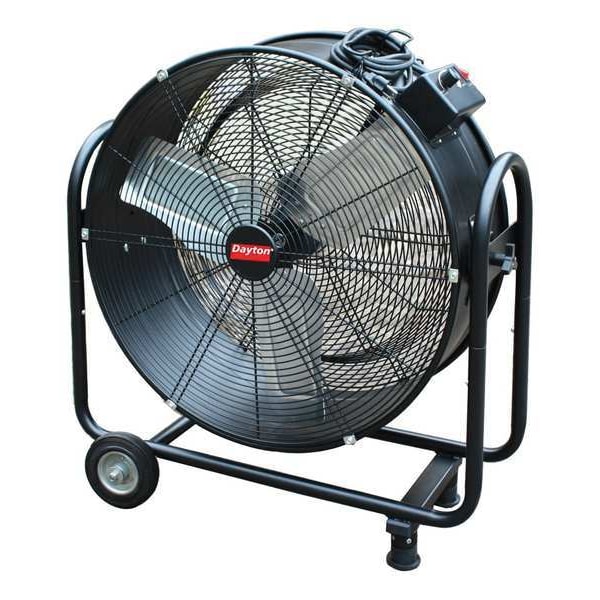

Dayton Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115V, 7,000 cfm, Non-Oscillating 31XL41 - main
Shop DAYTON

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115V, 7,000 cfm, Non-Oscillating

  • Mfr # 31XL41

  • Zoro # G9098187

product price:  $711.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
31XL41
Zoro #
G9098187
UPC #
190735257494
Country of Origin
China

Dimensions

Blade Diameter
24 in
Height
31 3/8 in
Width
29 1/4 in
Outside Dia.
25 in
Max. Depth
13-1/2 in
Shaft Dia.
12 mm
Height Adjustment
Fixed Height
Fan Cord Length
9 ft
Wheel Dia.
5 in
Depth
14 1/2 in

Details

Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115V
Phase
1
Motor HP
1/4
Air Flow
7,000 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
73 dBA
Item
Air Circulator
Air Velocity @ 40 Ft.
95 fpm
Assembled
Partially Assembled
Motor Enclosure
Totally Enclosed Air Over
Max. Ambient Temp.
120 Degrees F
Thermal Protection
Automatic Reset
Application
Spot Cooling and People Cooling
Guard Material
Steel
Fan Mounting Location
Floor
Wire Guard Finish
Polyester Powder Coated Dark Gray
Motor Insulation
Class A
Mobile/Stationary
Mobile
Air Velocity @ 20 Ft.
250 fpm
Watts
250
Air Velocity @ 60 Ft.
8 fpm
Standards
cULus Listed
Air Velocity @ 10 Ft.
400 fpm
Fan Accessory Style
Standard
CFM High
7000
Hz
60 Hz
Includes
5 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Motor RPM
250/1,200 RPM
Housing Material
Steel
Number of Blades
3
Bearing Type
Ball
Environmental Applications
Industrial
Motor Type
Brushless DC (ECM)
Fan Style
Standard Duty
Wheeled Base
Mobile
Wheel Material
Steel/Rubber
NEMA Plug Configuration
5-15P
Assembly Required
Yes
RPM
250/1200
Amps
0.1/3.1
Features
Variable Speed Motor
Fan Housing Material
Steel
Head Tilt Adjustment
360 Degrees
Color
Black
Material
Steel
Motor hp
1/4 hp
NEMA plug Configuration
5-15p

Description

Standard-Duty Industrial Fan, Blade Dia. 24 in, Mobile, Non-Oscillating, 1 Speeds, Voltage 115V AC, 1 Phase, CFM High 7000, Air Velocity @ 20 Ft. 250 fpm, Motor HP 1/4 hp, Motor RPM 250/1200, Operating Amps 0.1/3.1, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 250/1200, Sound Level 73 dBA, Max. Ambient Temp. 120 Degrees F, Hz 60 Hz, Watts 250, Motor Type Brushless DC (ECM), Drive Type Direct Drive, Outside Dia. 25 In., Height 31 3/8 in, Width 29 1/4 in
