Shop DAYTON

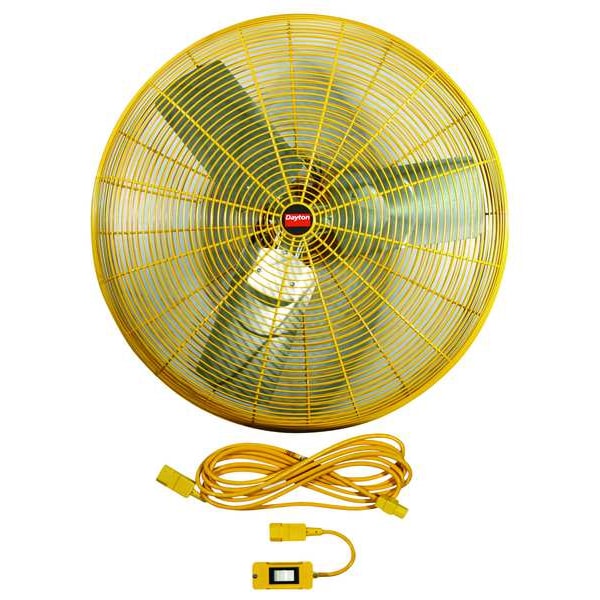

High Visibility High Visibility Industrial Fan, Ceiling, IBeam, Pedestal, Wall Mount, 115V

  • Mfr # 1VCH4

  • Zoro # G0476402

product price:
$
427.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1VCH4
Zoro #
G0476402
UPC #
190735148594
Country of Origin
China
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
Single
Motor HP
1/3 hp
Air Flow
3,800/6,100 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Fan Power Source
Plug-In
Sound Level
74 dBA
Item
Fan Head
Assembled
Yes
Number of Conductors
3
Guard Material
Steel
Motor Type
Permanent Split Capacitor
Standards
cUL, OSHA Compliant Wire Guards, UL Listed
CFM/Watt
24.9/27.2
Mobile/Stationary
Stationary
Number of Blades
3
Requires
Mounting Device
Housing Material
Steel
CFM High
6100
Air Velocity @ 10 Ft.
940/660 fpm
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling and People Cooling
Fan Mounting Location
Fan Head Only
Watts
450/350
Environmental Applications
Industrial
Motor RPM
1100/850
Wire Guard Finish
Powder Coated
Fan Style
High Visibility
Motor Enclosure
Totally Enclosed Air-Over
NEMA Plug Configuration
5-15P
Air Velocity @ 20 Ft.
550/400 fpm
Hz
60 Hz
Motor Insulation
B
Bearing Type
Ball
Includes
15 ft Extension Cord for 3 Position Drop Cord Switch, Mounting Bolts
CFM Low
3800
Thermal Protection
Automatic Reset
Air Velocity @ 60 Ft.
120/85 fpm
Fan Accessory Style
High Visibility
Air Velocity @ 40 Ft.
265/185 fpm
Wheeled Base
Stationary
RPM
850 RPM, 1,100 RPM
Fan Housing Material
Steel
Assembly Required
No
Color
Yellow
Amps
3.6/3.0
Material
Steel
Motor hp
1/3 hp
NEMA plug Configuration
5-15p
High-Visibility
Yes
Corrosion-Resistant
Yes
Airflow
3,800 cfm, 6,150 cfm
For Location
Manufacturing Plant
Fan Shape
Basket
Compatible with Brand
Dayton
Sound Level - Minimum
72 dBA
Removable Base
Permanently Lubricated
Head Tilt Adjustment
90 Degrees
Compatible Manufacturer Model Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14
Bearing Protection
Double-Sealed
Motor Design
Permanent Split Capacitor
For Mounting Type
Bracket
Environment Rating
Damp
Guard Color
Yellow
Compatible with Manufacturer Model Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14
For Manufacturer Part Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14
Compatible with Mfr. Model Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14
Compatible Manufacturer Part Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14

Description

High-Visibility Industrial Fan, Blade Dia. 24 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 115V AC, 1 Phase, CFM High 6100, CFM Low 3800, Air Velocity @ 20 Ft. 520/365 fpm, Motor HP 1/3 hp, Motor RPM 1100/850, Operating Amps 3.6/3.0, Fan Mounting Location Fan Head Only, Fan Accessory Style High Visibility, Fan RPM 1100/850, Sound Level 74 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 450/350, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 33 In.
