Shop DAYTON

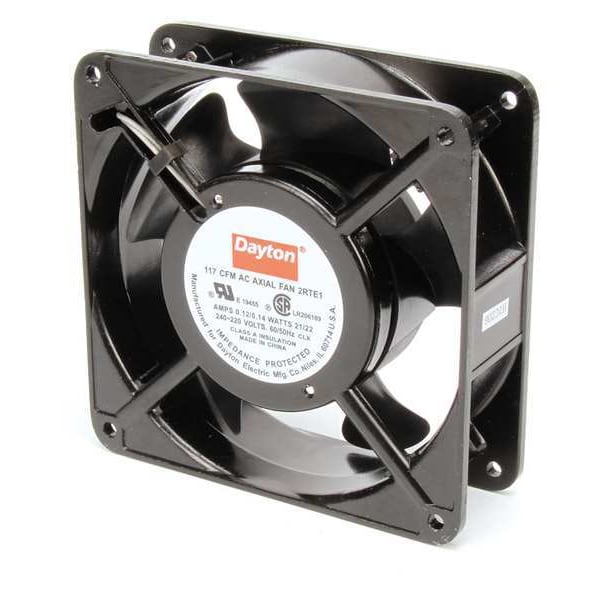

Standard Square Axial Fan, Square, 230V AC, 1 Phase, Aluminum, 4 11/16 in W.

  • Mfr # 2RTE1

  • Zoro # G0475431

product price:
$
45.29
/ea

Key Features

Blade Material
Polybutylene
CFM @ 0.000-In. SP
95 cfm, 115 cfm
Depth
1 1/2 in
Height
4 11/16 in
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2RTE1
Zoro #
G0475431
UPC #
190735230114
Country of Origin
China
Blade Material
Polybutylene
CFM @ 0.000-In. SP
95 cfm, 115 cfm
Housing Material
Aluminum
Phase
1
Shape
Square
Watts
21/22 W
Voltage
230V AC
Item
Axial Fan
Standards
RoHS Compliant, UL Recognized
Fan RPM
3150
Motor Insulation
A
Electrical Connection - Fans
Terminals
Fan Watts
21
Bearings
Ball
Electrical Connections
Terminals
Amps
0.12/0.14 A
dBA
50
Requires
Cord Set (Not Included)
Max. Ambient Temp.
158 Degrees F
Motor Type
Shaded pole
Mounting Position
Horizontal/Vertical
Thermal Protection
Yes
Fan dBA
50
Housing Finish
Black Painted
Mounting Eye O.C.
4 1/8 in
Hz
60/50 Hz
Mounting Eye O.C. - Fans
4-1/8"
Fan Item
Axial Fan
Fan Voltage
230VAC
Fan Shape
Square
IP Rating
IP20
Bearing Type
Ball
RPM
2,850 RPM, 3,150 RPM
Environmental Applications
Equipment Cooling
Color
Black
Motor Design
Shaded Pole
Environment Rating
Dry
Sound Level
50 dBA
Includes Guard
No
Sound Level - Minimum
45 dBA
Includes Filter
No
Removable Base
Permanently Lubricated

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 11/16 in, Depth 1 1/2 in, Width 4 11/16 in, CFM @ 0.000-In. SP 115/95 cfm, Watts 21/22 W, Voltage 230V AC, 60/50 Hz Hz, 0.12/0.14 A Amps, Electrical Connection - Fans Terminals, Sound Level 50/45, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 3150/2850 RPM RPM, Motor Design Shaded Pole, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F
