  9. Std Duty Fan, 24,981 cfm, 208-230/460V
Shop All Belt Driven Exhaust Fans
Dayton

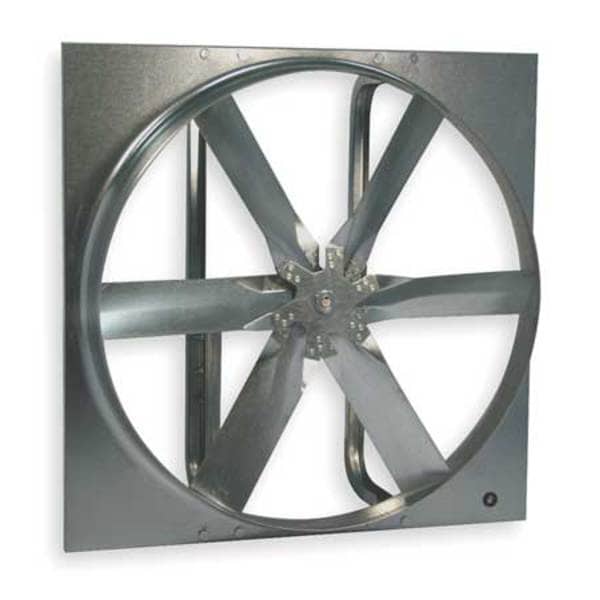

Std Duty Fan, 24,981 cfm, 208-230/460V

product price: $1,879.99
/ea
Item requires special delivery charges. A $190.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Blade Dia. 48 in
  • Exhaust/Supply Fan Motor HP 1 1/2 hp
  • Drive Package With Motor Included Yes
  • Bearing Type Regreasable Pillow Block
  • Max. Inlet Temp. 104 Degrees F
See all product information

Product Information

Dimensions

Blade Dia. 48 in
Dimension F 48 1/2 in
Flange Depth 2 in
Venturi Clearance Dia. 48 1/2 in
Dimension D 2 in
Dimension B 23 1/2 in
Dimension E 16 1/2 in
Flange Width 54 in
Width (In.) 54 in
Height 54 in
Shaft Dia. 1 1/4 in
Bearing Size 1 1/4 in
Venturi Depth 7 in
Dimension A 54 in
Max. Depth 23 1/2 in
Dimension C 7 in
For Cut-Out Length 50 1/2 in
Overall Height 54 in
Manufacturer Warranty Length 1 yr
For Cut-Out Width 50 1/2 in
Shaft Diameter 1 1/4 in
Overall Depth 23 1/2 in
Blade Diameter 48 in
For Cut-Out Height 50 1/2 in
Overall Width 54 in
Venturi Diameter 48 1/2 in
Width 54"

Details

Exhaust/Supply Fan Item Exhaust Fan
Exhaust/Supply Fan Motor HP 1 1/2 hp
Drive Package With Motor Included Yes
Bearing Type Regreasable Pillow Block
Max. Inlet Temp. 104 Degrees F
Fiberglass Wall Shutter No. 5C220
Item Exhaust Fan with Drive Package
Full Load Amps 4.6-4.8/2.4
Galvanized Wall Shutter No. 1C211
Motor Type 3-Phase
Weatherhood No. 1WBW4
Sones @ 0.250-In. SP @ 5 Ft. 22
Motor RPM 1,725 RPM
Includes Drive Package
Fan RPM 491
Wall Collar Stock No. 1WBV5
Stock No. 1WDC4
Number of Blades 6
CFM @ 0.250-In. SP 19,129 cfm
Motor Insulation Class F
CFM @ 0.125-In. SP 22,460 cfm
Motorized Wall Galv. Shutter Stock No. 3C731
Phase 3
Assembled/Unassembled Unassembled
Frame Material Steel
Standards AMCA, UL/cUL
Max. BHP 1.8 hp
Hz 60 Hz
Sones @ 0.000-In. SP @ 5 Ft. 22
Intake Guard No. 1WBU7
Drive Package Included Yes
Propeller Material Galvanized Steel
Aluminum Wall Shutter No. 3C312
Fan Voltage 208-230/460V AC
Motor Enclosure Totally Enclosed Fan Cooled
Mounting Position Horizontal or Vertical
CFM @ 0.000-In. SP 24,981 cfm
Includes Motor Yes
Blade Material Steel
Noise Level @ 0.000 in SP @ 5 ft 22 sones
Ventilation Type Exhaust
Exhaust Airflow @ 0.250 in SP 19,129 cfm
Guard Type None
Noise Level @ 0.125 in SP @ 5 ft 24 sones
Frequency 60 Hz
Speed Controllable No
Maximum Airflow 24,981 cfm
Vent Design Ductless
Number of Shutters 0
Assembled Unassembled
Number of Speeds 1
Fan Style Panel
Number of Fans 1
Maximum Inlet Temperature 104 Degrees F
Motor Horsepower 1 1/2 hp
Full Load Current 4.8 A
Includes Grill No
Drive Type Belt Drive
Blade Finish Galvanized
Nameplate Voltage 208-230/460V AC
Maximum Noise Level 22 sones
Exhaust Airflow @ 0.000 in SP 24,981 cfm
Mounting Orientation Horizontal, Vertical
Exhaust Airflow @ 0.125 in SP 22,460 cfm
Includes Dehumidistat No
Motor Speed 1,725 RPM
Frame Finish Zinc Plated
Voltage 208-230/460

Description

Exhaust Fan with Drive Package, Assembled Unassembled, Blade Diameter 48 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 24,981 cfm, For Cut-Out Height 50 1/2 in, For Cut-Out Width 50 1/2 in, Frame Finish Zinc Plated, Frame Material Steel, Guard Type None, Includes Drive Package, Includes Dehumidistat No, Maximum Airflow 24,981 cfm, Maximum Noise Level 22 sones

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • This item has been restricted from sale in the following states: CA
