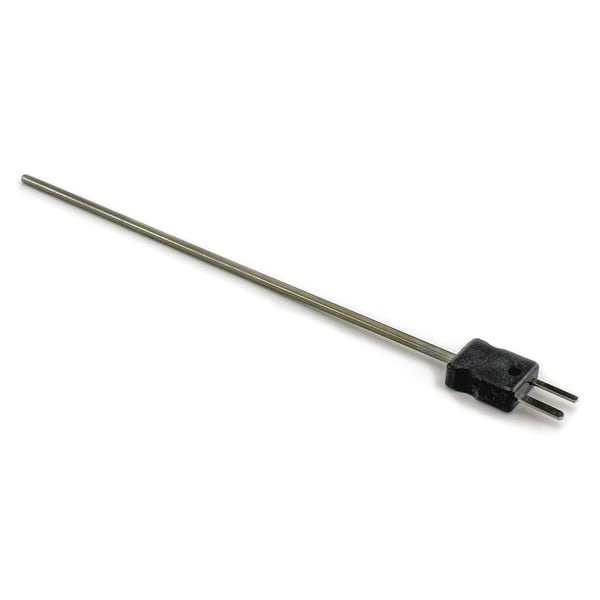

Dayton Thermocouple Probe, Mini Plug, Type J 36GL09 - main

Thermocouple Probe, Mini Plug, Type J

  • Mfr # 36GL09

  • Zoro # G0025551

product price: $29.59
/ea

Key Features

Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
22 AWG
Probe Length
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36GL09
Zoro #
G0025551
UPC #
190735274682
Country of Origin
United States

Dimensions

Probe Length
6 in
Sheath Size (In.)
0.125 in
Probe Size
1/8 in x 6 in
Cable Length
6 in
Probe Tip Diameter
0.125 in
Probe Diameter
0.125 in

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
22 AWG
Material
304 Stainless Steel
Plug or Connector Type
Mini Plug
Max. Pressure (PSI)
1,000 psi
Standards
ANSI
Insulation
Magnesium Oxide
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Construction
Metal Insulated Cable
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
For Surfaces
No
Maximum Temperature °F
2,193 Degrees F
Probe Sheath Material
304 Stainless Steel
For Application
Air, Gas, Liquid
Accuracy
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
Junction Type
Ungrounded
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Head Material
304 Stainless Steel
Cable Material
Magnesium Oxide Insulation
Response Time
1.1 sec
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
For Liquids and Gels
Yes
Maximum Temperature °C
1,200 Degrees C
Includes Thermowell
No
For Air
Yes
Probe Bend
Straight
For Gases
Yes
Temperature Range
-346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C
Sensor Type
Thermocouple
Connector Type
Mini Plug
For Solids
No
Fitting Type
Compression
Tip Style
Rounded
Maximum Wire Gauge
20 AWG
Minimum Temperature °F
-346 Degrees F
Minimum Temperature °C
-210 Degrees C
Maximum Temperature °C
1,200 Degrees C
Minimum Temperature °C
-210 Degrees C
Maximum Temperature °F
2,193 Degrees F
Minimum Temperature °F
-346 Degrees F

Description

Thermocouple Probe, Type J, Ungrounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Mini Plug, Probe Size 1/8 in x 6 in, Cable Length 6 in, -346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C, Thermocouple
