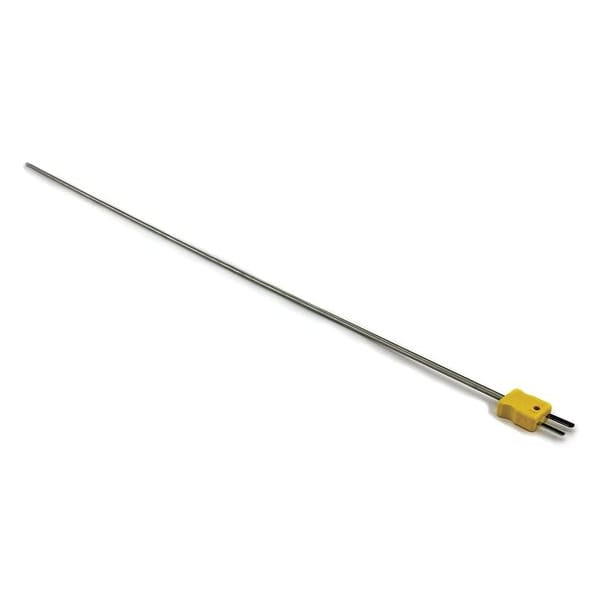

Dayton Thermocouple Probe, Mini Plug, Type K 36GK78 - main

Thermocouple Probe, Mini Plug, Type K

  • Mfr # 36GK78

  • Zoro # G9760511

product price: $37.49
/ea

Key Features

Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150
Thermocouple Element
22 AWG
Probe Length
18 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36GK78
Zoro #
G9760511
UPC #
190735274385
Country of Origin
United States

Dimensions

Probe Length
18 in
Sheath Size (In.)
0.125 in
Probe Diameter
0.125 in
Cable Length
18 in
Probe Tip Diameter
0.125 in
Probe Size
1/8 in x 18 in

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150
Thermocouple Element
22 AWG
Material
Inconel 600
Plug or Connector Type
Mini Plug
Construction
Metal Insulated Cable
Insulation
Magnesium Oxide
Max. Pressure (PSI)
1,000 psi
Standards
ANSI
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
For Gases
Yes
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Probe Sheath Material
Inconel
For Surfaces
No
Temperature Range
-325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C
Maximum Temperature °F
2,280 Degrees F
Minimum Temperature °F
-325 Degrees F
Fitting Type
Compression
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Sensor Type
Thermocouple
Accuracy
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
Response Time
1.1 sec
Cable Material
Magnesium Oxide Insulation
Tip Style
Rounded
Probe Bend
Straight
Maximum Wire Gauge
20 AWG
For Liquids and Gels
Yes
For Air
Yes
For Solids
No
Head Material
Inconel
Includes Thermowell
No
For Application
Air, Gas, Liquid
Junction Type
Ungrounded
Connector Type
Mini Plug
Maximum Temperature °C
1,250 Degrees C
Minimum Temperature °C
-200 Degrees C
Maximum Temperature °F
2,280 Degrees F
Minimum Temperature °F
-325 Degrees F
Minimum Temperature °C
-200 Degrees C
Maximum Temperature °C
1,250 Degrees C

Description

Thermocouple Probe, Type K, Ungrounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Mini Plug, Probe Size 1/8 in x 18 in, Cable Length 18 in, -325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C, Thermocouple
