Shop DAYTON

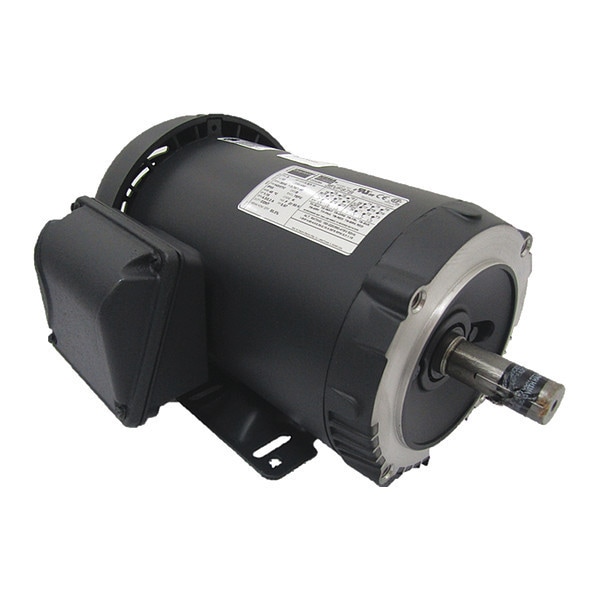

Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 3510 Nameplate RPM

  • Mfr # 36VF87

  • Zoro # G1860367

product price:  $449.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.8/1.9 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF87
Zoro #
G1860367
UPC #
190735276198
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 15/16 in
Overall Length
13 3/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
7/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.45 in
Frame Size
143-5TC

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.8/1.9 A
Frame
143/5TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Includes
Shaft Key
Footnotes
5, 15, 54
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Capacitor Required
No
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
NEMA Design Class
B
Usable @ 208V
Not Usable at 208V
Variable Torque Rating
10:1
Product Type
General Purpose Motor
Weight
16 9/32 kg
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
3.8 / 1.9 A
Manufacturers Warranty
1 yr
Conduit Box Location
Exterior
Bearing Protection Type
Shaft Slingers
Constant Torque Rating
4:1
Nameplate Service Factor @ 60 Hz
1.15
Bearing Lubrication Type
Permanently Lubricated
Frequency
60 Hz
Frame Material
Steel
Mounting Position
Horizontal
Inverter Rating
Inverter Rated
Shaft Design
Keyed
Application
General Purpose
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3510, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.8/1.9 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL
