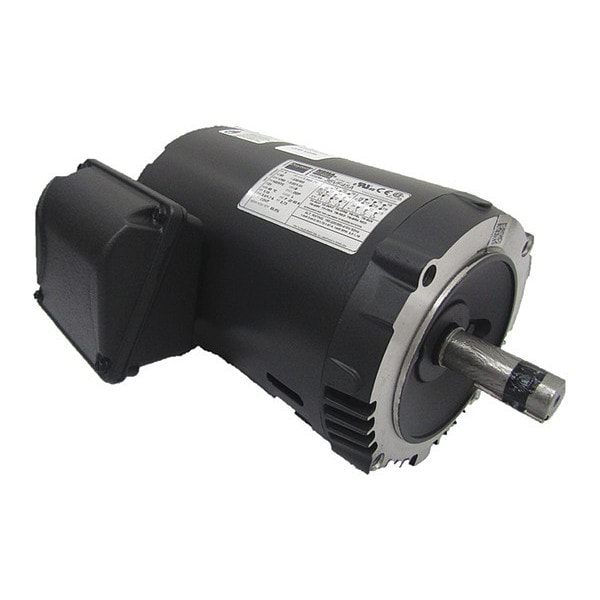

Three-Phase General Purpose Motor, 1 HP, 143/5TC Frame, 230/460V AC Voltage, 1760 Nameplate RPM
Mfr # 36VF45
Zoro # G1811035
product price: $388.99
/ea
Free Shipping & Returns
Key Features
HP
1
Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.2/1.6 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
36VF45
Zoro #
G1811035
UPC #
190735275771
Country of Origin
Mexico
Dimensions
Length Less Shaft
9 3/8 in
Overall Length
11 9/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1760, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.2/1.6 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Conduit Box
