Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 1760 Nameplate RPM

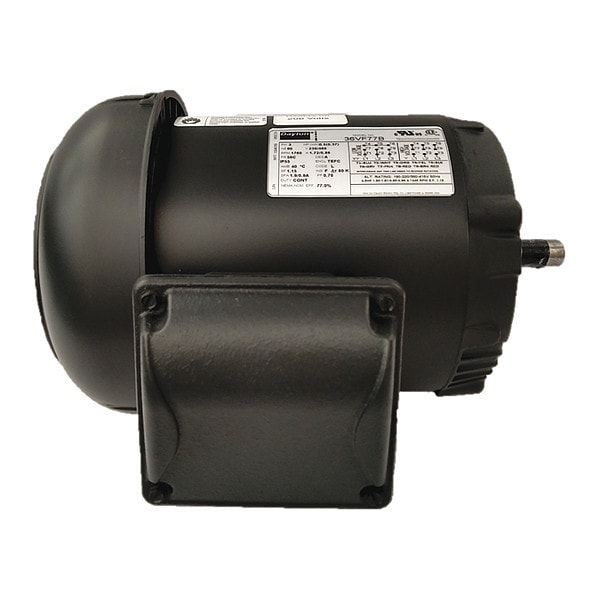

The DAYTON - 36VF77 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It functions by converting electrical energy into mechanical energy to operate different types of machinery. Its versatility allows it to be utilized across various sectors, from manufacturing lines to HVAC systems.

Key Features of the DAYTON - 36VF77 General Purpose Motor:

• Duty Cycle: The motor is designed for a continuous duty cycle, which may be beneficial in certain industrial applications.
• Frame: With a frame size of 56C, this motor conforms to standard specifications for compatibility and interchangeability.
• Full Load Amps: When operating at full capacity, the motor is expected to draw a maximum current of 1.7/0.86 A; this information can assist with determining power supply requirements.
• Inverter Rated: Yes - This indicates that the motor is compatible with being powered by a variable frequency drive, potentially providing control over speed and torque depending on application needs.
• Motor Bearings: Ball bearings are incorporated within the design intended to reduce friction between moving parts; actual performance may vary based on load conditions.
• Nameplate RPM: The speed at which this motor operates when under full load is indicated as 1760 RPM on its factory-installed nameplate.
• Nominal Efficiency: It has an efficiency rating of 77% as per manufacturer's testing; actual conversion rates may depend on specific usage scenarios.
• Voltage Compatibility:The specified voltage range for this product's use is from 200-230/440V AC up to 208-230/460V AC; operation outside these parameters may affect performance and longevity.
