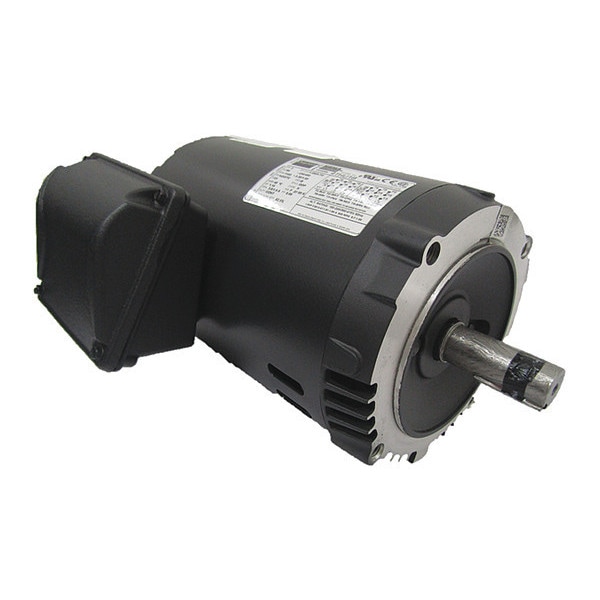

Three-Phase General Purpose Motor, 1 HP, 145TC Frame, 230/460V AC Voltage, 1,140 Nameplate RPM

  • Mfr # 4THU1

  • Zoro # G2001684

product price:  $444.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,140
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.3/1.7 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4THU1
Zoro #
G2001684
UPC #
190735334232
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 11/16 in
Overall Length
12 1/4 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Frame Size
145TC
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
7/8 in
Body Diameter
6.45 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1,140
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.3/1.7 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
82.5 %
Standards
CSA, UL
CC Number
CC029A
Footnotes
2,10
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
NEMA Design
B
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Shaft Design
Keyed
Includes
Shaft Key
Product Type
General Purpose Motor
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Conduit Box Location
Exterior
Weight
15 15/16 kg
Usable @ 208V
Not Usable at 208V
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Variable Torque Rating
10:1
Nameplate Service Factor @ 60 Hz
1.15
Bearing Lubrication Type
Permanently Lubricated
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Full Load Current @ 60 Hz
3.3/1.65 A
NEMA Design Class
B
Application
General Purpose
Manufacturers Warranty
1 yr
Bearing Protection Type
No Protection
Insulation Class
F

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1,140, Frame 145TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.3/1.7 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
