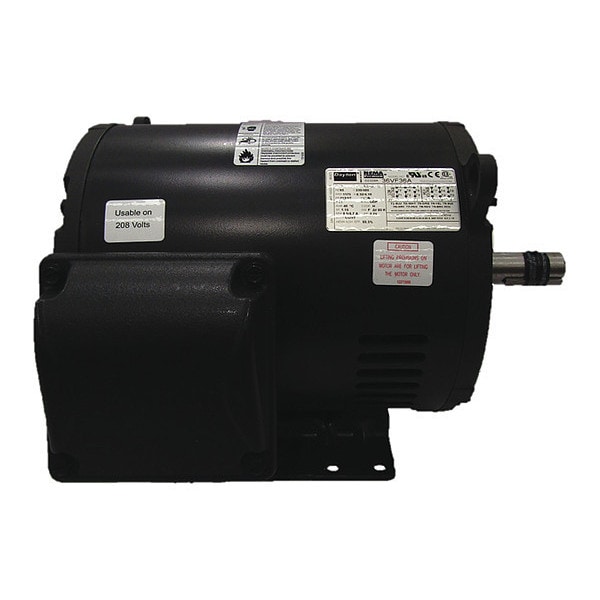

Three-Phase General Purpose Motor, 3 HP, 213/5T Frame, 230/460V AC Voltage, 1175 Nameplate RPM

  • Mfr # 36VF36

  • Zoro # G1860489

product price:  $910.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

HP
3
Nameplate RPM
1175
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.3/4.1 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF36
Zoro #
G1860489
UPC #
190735275689
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 3/16 in
Overall Length
16 5/8 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
9.78 in
Shaft Diameter
1 3/8 in
Frame Size
213-5T

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1175
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.3/4.1 A
Frame
213/5T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
2,15,56
Motor Thermal Protection
None
Includes
Shaft Key
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Capacitor Required
No
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Bearing Protection Type
No Protection
Weight
47 23/32 kg
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
8.3 / 4.1 A
Efficiency Rating
NEMA Premium Efficiency
Mounting Position
Horizontal
Application
General Purpose
Conduit Box Location
Exterior
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C
Bearing Lubrication Type
Permanently Lubricated
Usable @ 208V
Not Usable at 208V
Shaft Design
Keyed
Bearing Type
Ball
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Frame Material
Steel
Inverter Rating
Inverter Rated
Variable Torque Rating
10:1
Frequency
60 Hz
Product Type
General Purpose Motor

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1175, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.3/4.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Shaft Key
