Shop DAYTON

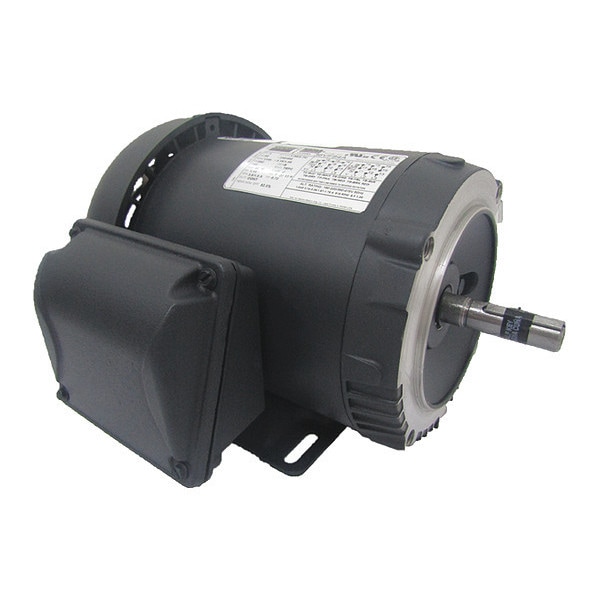

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,145 Nameplate RPM

  • Mfr # 36VF84

  • Zoro # G1860376

product price:
$
467.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,145
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.3/1.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF84
Zoro #
G1860376
UPC #
190735276167
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 5/8 in
Overall Length
13 1/2 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56C
Body Diameter
6.45 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Wire Rope Length
13 1/2 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1,145
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.3/1.6 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
82.5 %
Standards
CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
5, 15, 56
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Capacitor Required
No
Duty Cycle
Continuous
Variable Torque Rating
10:1
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Lubrication Type
Permanently Lubricated
Usable @ 208V
Not Usable at 208V
Mounting Position
Horizontal
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Includes
Shaft Key
NEMA Design Class
B
Frequency
60 Hz
Weight
17 9/16 kg
Manufacturers Warranty
1 yr
Bearing Type
Ball
Frame Material
Steel
Application
General Purpose
Inverter Rating
Inverter Rated
Number of Speeds
1
Constant Torque Rating
4:1
Product Type
General Purpose Motor
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Efficiency Rating
NEMA Premium Efficiency
Bearing Protection Type
Shaft Slingers
Shaft Design
Keyed
Full Load Current @ 60 Hz
3.16/1.58 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,145, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.3/1.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
