Shop DAYTON

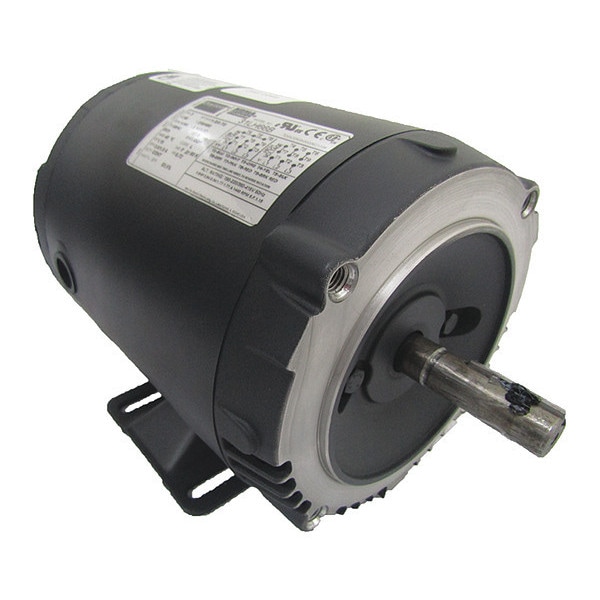

Three-Phase General Purpose Motor, 1 HP, 56HC Frame, 230/460V AC Voltage, 1760 Nameplate RPM

  • Mfr # 31LH66

  • Zoro # G9096403

product price:  $376.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.1/1.6 A
Frame
56HC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31LH66
Zoro #
G9096403
UPC #
190735255339
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 1/8 in
Overall Length
11 1/2 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56HC
Shaft Diameter
5/8 in
Body Diameter
6.45 in
Bolt Circle Diameter
5 7/8 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.1/1.6 A
Frame
56HC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
83.5 %
Standards
CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Inverter Rated
Yes
Includes
Shaft Key
Footnotes
15,16
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Number of Speeds
1
Frequency
60 Hz
Conduit Box Location
Interior
Frame Material
Steel
Manufacturers Warranty
1 yr
Bearing Protection Type
No Protection
Usable @ 200V
Not Usable at 200V
NEMA Design Class
B
Product Type
General Purpose Motor
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Variable Torque Rating
10:1
Bearing Lubrication Type
Permanently Lubricated
Shaft Design
Keyed
Inverter Rating
Inverter Rated
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
3.14/1.57 A
Motor Enclosure Type
Open Drip Proof
Weight
12 29/32 kg

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1760, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.1/1.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 83.5 Percent, Continuous Duty, 1701-1800, CSA, UL
