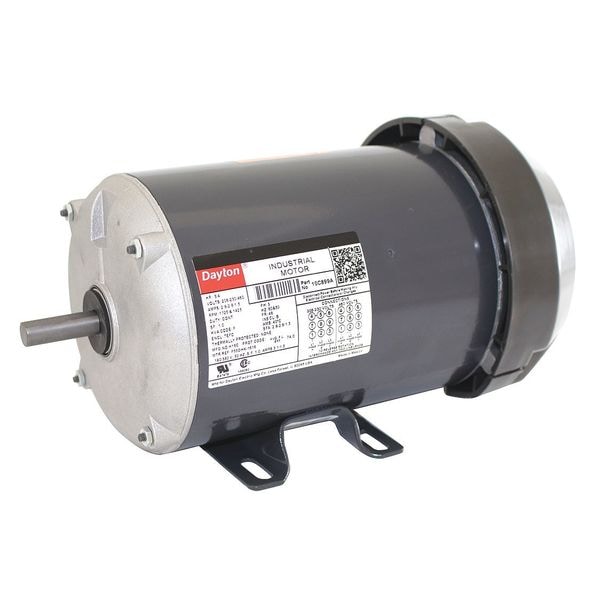

Dayton Three-Phase General Purpose Motor, 3/4 HP, 48 Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM 10C899 - main

Three-Phase General Purpose Motor, 3/4 HP, 48 Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 10C899

  • Zoro # G3919614

product price:  $343.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
1,725
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
2.8-2.8/1.5 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
10C899
Zoro #
G3919614
UPC #
190735108734
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 in
Overall Length
11 1/2 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Manufacturers Warranty Length
1 yr
Body Diameter
5.62 in
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Frame Size
48

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
1,725
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
2.8-2.8/1.5 A
Frame
48
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60/50 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal/Vertical Shaft Down
Motor Shaft Design
Flat
Nominal Efficiency
74 %
Standards
CSA Certified (258501), UL Recognized (E47479)
Footnotes
3, 10, 51
Motor Thermal Protection
None
Inverter Rated
Yes
Duty Cycle
Continuous
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Usable @ 208V
Usable at 208V
Manufacturers Warranty
1 yr
Weight
22 lb
Full Load Current @ 50 Hz
3.1/1.6
Bearing Lubrication Type
Permanently Lubricated
NEMA Design Class
B
Usable @ 200V
Usable at 200V
Bearing Type
Ball
Nameplate RPM @ 50 Hz
1,425 RPM
Efficiency Rating
NEMA Energy Effiicent
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
190/380V AC
Conduit Box Location
Exterior
Shaft Design
Flat
Nameplate Horsepower @ 50 Hz
3/4 hp
Inverter Rating
Inverter Rated
Number of Speeds
1
Mounting Position
Horizontal/Vertical Shaft Down
Full Load Current @ 60 Hz
2.8-2.8/1.5 A
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Includes
Conduit Box
Frequency
60/50 Hz

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,725, Frame 48, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 2.8-2.8/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 1701-1800
