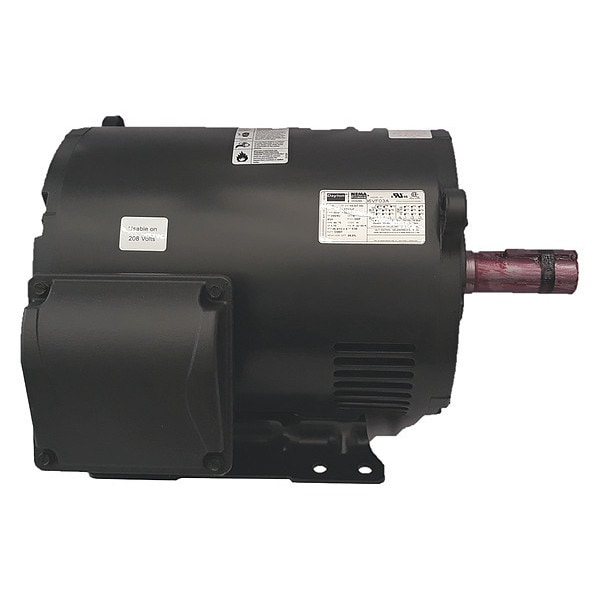

Three-Phase General Purpose Motor, 10 HP, 254/6U Frame, 230/460V AC Voltage, 3,540 Nameplate RPM

  • Mfr # 36VF03

  • Zoro # G1860601

product price:  $1,678.99
/ea
Additional $105.00 delivery surcharge applies per item.
See details

Key Features

HP
10
Nameplate RPM
3,540
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.4/11.7 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF03
Zoro #
G1860601
UPC #
190735275368
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 1/2 in
Overall Length
20 1/4 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 3/8 in
Body Diameter
11.52 in
Frame Size
254-6U

Details

Item
General Purpose Motor
HP
10
Nameplate RPM
3,540
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.4/11.7 A
Frame
254/6U
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, UL
CC Number
CC029A
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Shaft Key
Motor Thermal Protection
None
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
2,15,54
Duty Cycle
Continuous
Capacitor Required
No
Variable Torque Rating
10:1
Product Type
General Purpose Motor
Bearing Protection Type
No Protection
Application
General Purpose
Full Load Current @ 60 Hz
23.4/11.7 A
Manufacturers Warranty
1 yr
Insulation Class
F
Bearing Type
Ball
Mounting Position
Horizontal
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
Inverter Rating
Inverter Rated
Bearing Lubrication Type
Regreasable
Motor Enclosure Type
Open Drip Proof
Weight
75 3/8 kg
Number of Speeds
1
Frequency
60 Hz
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Usable @ 208V
Not Usable at 208V

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 3,540, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.4/11.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
