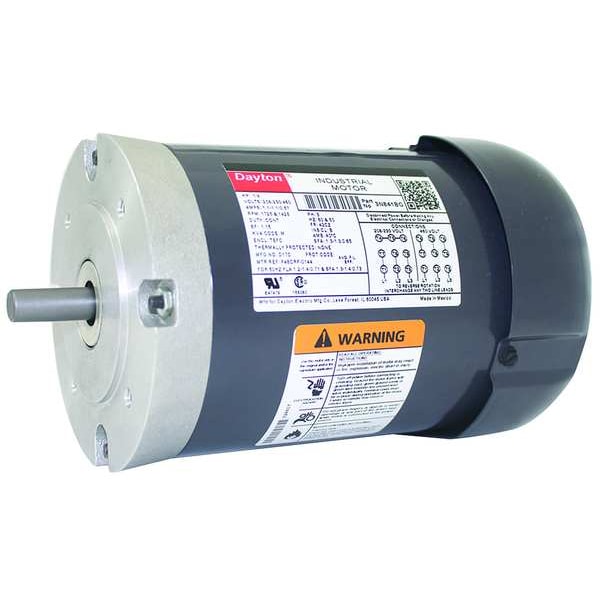

Three-Phase General Purpose Motor, 1/4 HP, 42CZ Frame, 230/460V AC Voltage, 1,725 Nameplate RPM
Mfr # 3N841
Zoro # G2578195
product price:Â $391.99
/ea
Free Shipping & Returns
Key Features
HP
1/4
Nameplate RPM
1,725
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.2/0.60 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
3N841
Zoro #
G2578195
UPC #
190735292730
Country of Origin
Mexico
Dimensions
Length Less Shaft
7 7/16 in
Overall Length
9 1/4 in
Shaft Dia.
1/2 in
Shaft Length
1 1/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Frame Size
42CZ
Shaft Diameter
1/2 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,725, Frame 42CZ, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.2/0.60 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 1701-1800
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
