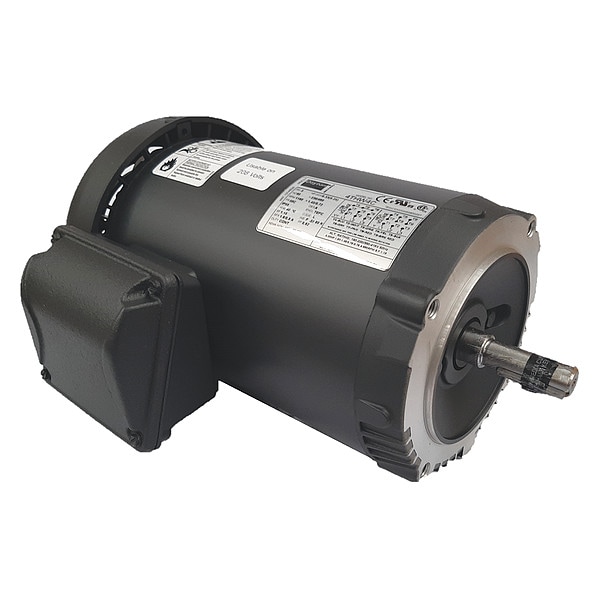

Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM

  • Mfr # 4THW4
  • Zoro # G2025222
product price:
$
305.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1,140
Voltage
230V AC, 460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.5/0.70 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4THW4
Zoro #
G2025222
UPC #
190735334300
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/4 in
Overall Length
12 1/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Diameter
5 7/8 in
Wire Rope Length
12 1/8 in
Frame Size
56C
Body Diameter
6.45 in
Shaft Diameter
5/8 in
Length
12 1/8 in

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
1,140
Voltage
230V AC, 460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.5/0.70 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
70 %
Standards
CE, CSA, UL
Motor Thermal Protection
None
Inverter Rated
Yes
Footnotes
2,10
NEMA Design
B
Duty Cycle
Continuous
Product Type
General Purpose Motor
Variable Torque Rating
10:1
Bearing Type
Ball
Number of Speeds
1
Bearing Protection Type
Shaft Slingers
NEMA Design Class
B
Insulation Class
F
Conduit Box Location
Exterior
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Inverter Rating
Inverter Rated
Frequency
60 Hz
Usable @ 200V
Not Usable at 200V
Efficiency Rating
NEMA Standard Efficiency
Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
Manufacturers Warranty
1 yr
Bearing Lubrication Type
Permanently Lubricated
Includes
Shaft Key
Weight
10 5/8 kg
Full Load Current @ 60 Hz
1.45/0.723 A
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,140, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.5/0.70 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 70 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
