  11. Variable Freq Drive, 5HP, 17.5A, For 3-Ph

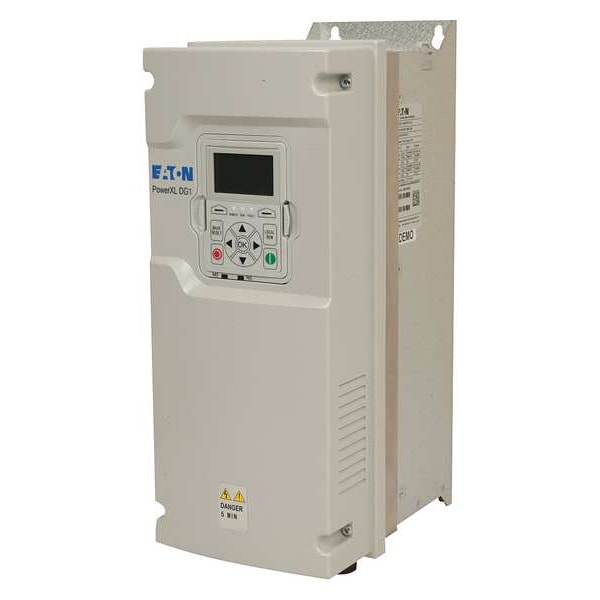

Eaton Variable Freq Drive, 5HP, 17.5A, For 3-Ph DG1-32012FB-C21C - main

Variable Freq Drive, 5HP, 17.5A, For 3-Ph

  • Mfr # DG1-32012FB-C21C

  • Zoro # G0121129

product price: $1,454.99
/ea
Free Shipping & Returns

Key Features

Dynamic Braking
Yes
Max. HP
5 hp
Output Voltage
240V AC
Input Phase AC
Three
Width
6.61 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DG1-32012FB-C21C
Zoro #
G0121129
UPC #
786685886053
Country of Origin
Dominican Republic

Dimensions

Width
6.61 in
Height
14.96 in
Depth
9.63 in
Overall Width
10 1/2 in
Overall Depth
21 in
Overall Height
14 1/2 in

Details

Dynamic Braking
Yes
Max. HP
5 hp
Output Voltage
240V AC
Input Phase AC
Three
Input Voltage
240V AC
Key Pad Lockout
Yes
For Use With
3-Phase Inverter Duty Motor
Protection
Incoming Surge, Input Phase Loss, Output Phase Loss, Overcurrent, Overheating, Overload, Overvoltage, Stall, Under Voltage
Display Type
LCD
Standards
RoHS, GoST-R, C-Tick, CE, cUL Listed, UL Listed, UL 508C, EN ISO 13849-1, IEC 61508, EN 62061
With Line Contactor / No Line Contactor
No Line Contactor
Control Type
Keypad
With Bypass / No Bypass
No Bypass
Digital Readout
Yes
Start/Stop Control
Programmable
Displays
LCD Keypad
Output Phase AC
Three
Max. Output Amps
17.5 A
Item
Variable Frequency Drive
Enclosure
Open
Accepts Input Control Signal
0-10V DC, 4-20mA
Starting Torque
1.5
Input Frequency
50/60 Hz
Control Method
Active Energy Control
Style
Industrial High Performance
Output Frequency Range
0 to 400 Hz
Enclosure Rating
NEMA 1
Input Type
Analog, Digital
Output Type
Analog, Digital
Ethernet Port Included
Yes
Color
White
Number of Outputs
(1) Digital Output, (2) Analog Output
Maximum Output Current
12.5 A
Form Factor
0.01 Hz Resolution
Torque Application
Constant Torque, Variable Torque
Application
Industrial General Purpose Drive
Maximum Output Power
5 hp
Brake Chopper Included
Yes
Number of Inputs
(8) Digital Inputs, (2) Analog Input
Series
Power XL Drives
Input Voltage Range
208 to 240V AC
Output Voltage Range
208V AC to 240V AC

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 5 hp, Maximum Output Current 12.5 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0 to 400 Hz, Enclosure Rating NEMA 1
