  6. Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V Voltage, 1,745 Nameplate RPM
No Product Image Available

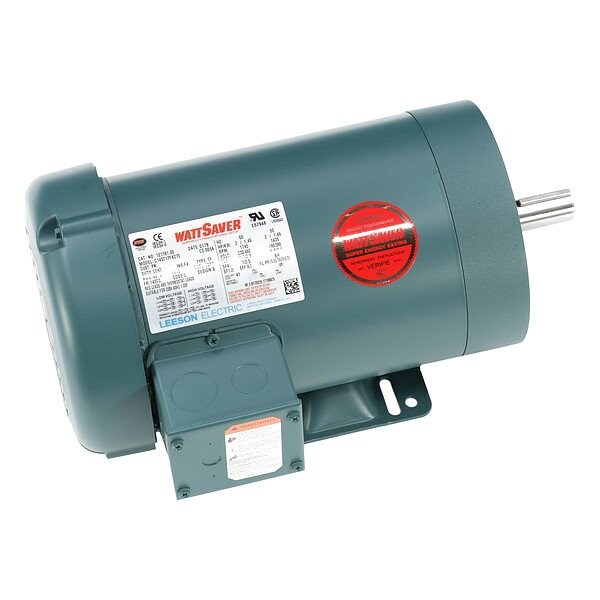

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V Voltage, 1,745 Nameplate RPM

  • Mfr # 121181.00

  • Zoro # G611929100

product price:  $1,001.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1,745
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
121181.00
Zoro #
G611929100
UPC #
691720016787
Country of Origin
United States

Dimensions

Length Less Shaft
11 11/16 in
Overall Length
13 15/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Bolt Circle Dia.
Not available
Manufacturers Warranty Length
Not available

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1,745
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.0 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1745
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460 V
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA Certified, UL Listed
Voltage @ 50Hz
190/380V
Full Load Amps @ 50Hz
2.0 A
Includes
Not available
RPM @ 50Hz
1,435
Usable @ 200V
No
HP @ 50Hz
2 hp
Duty Cycle
Continuous
Usable @ 208V
Yes
Service Factor @ 50Hz
1.25
Motor Thermal Protection
T-Stat
Weight
49 lb
NEMA Design
B
Bearing Protection
Not available

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1,745, Frame 145TC, Voltage 230/460V, 60/50 Hz Hz, Three Phase, Full Load Amps 2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, 1745, CE, CSA Certified, UL Listed
