Shop DAYTON

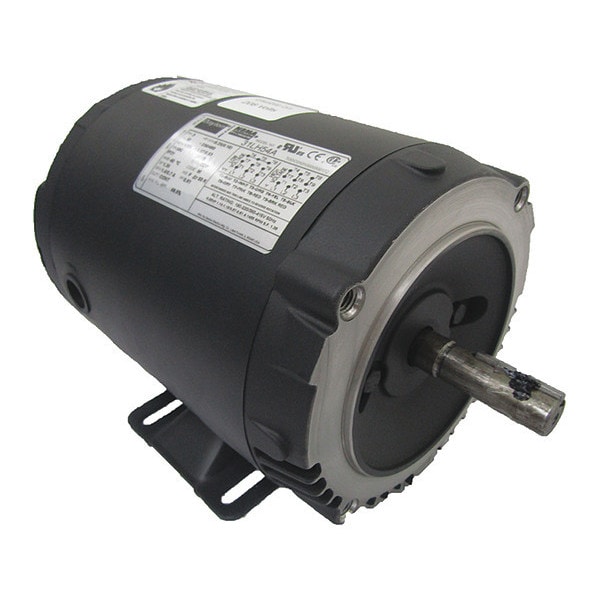

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1720 Nameplate RPM

  • Mfr # 31LH54

  • Zoro # G9096281

product price:  $241.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1720
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.0/0.50 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
31LH54
Zoro #
G9096281
UPC #
190735255216
Country of Origin
Mexico

Dimensions

Length Less Shaft
6 15/16 in
Overall Length
9 15/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
6.45 in
Bolt Circle Diameter
5 7/8 in
Frame Size
56C
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1720
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.0/0.50 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.35
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
69.5 %
Standards
CE, CSA, UL
Inverter Rated
Yes
Footnotes
15,16
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Shaft Key
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Frequency
60 Hz
Bearing Type
Ball
Weight
7 5/8 kg
Usable @ 208V
Not Usable at 208V
Bearing Lubrication Type
Permanently Lubricated
Frame Material
Steel
Number of Speeds
1
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Bearing Protection Type
No Protection
Usable @ 200V
Not Usable at 200V
Insulation Class
F
Variable Torque Rating
10:1
Motor Enclosure Type
Open Drip Proof
Manufacturers Warranty
1 yr
Shaft Design
Keyed
NEMA Design Class
B
Full Load Current @ 60 Hz
1.0 / 0.50 A
Conduit Box Location
Interior
Efficiency Rating
NEMA Premium Efficiency

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/4 HP, Nameplate RPM 1720, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.0/0.50 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 69.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
