Shop DAYTON

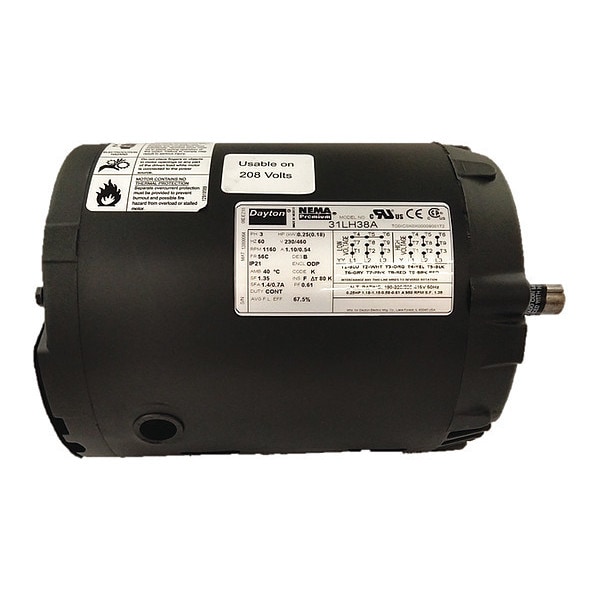

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM

  • Mfr # 31LH38

  • Zoro # G9096123

product price:  $264.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1160
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.1/0.55 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31LH38
Zoro #
G9096123
UPC #
190735255056
Country of Origin
Mexico

Dimensions

Length Less Shaft
7 1/8 in
Overall Length
10 5/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
6.45 in
Bolt Circle Diameter
5 7/8 in
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
10 5/16 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1160
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.1/0.55 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.35
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
67.5 %
Standards
CE, CSA, UL
Motor Thermal Protection
None
Footnotes
15,16
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Yes
Includes
Shaft Key
Capacitor Required
No
Duty Cycle
Continuous
Conduit Box Location
Interior
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Shaft Design
Keyed
Bearing Type
Ball
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
1.1/0.549 A
Efficiency Rating
NEMA Premium Efficiency
Bearing Lubrication Type
Permanently Lubricated
Bearing Protection Type
No Protection
Weight
8 5/32 kg
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Number of Speeds
1
Variable Torque Rating
1000:1
Usable @ 200V
Not Usable at 200V
Manufacturers Warranty
1 yr
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1.35
Product Type
General Purpose Motor
Insulation Class
F
Frequency
60 Hz

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/4 HP, Nameplate RPM 1160, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.1/0.55 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 67.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Shaft Key
