Shop DAYTON

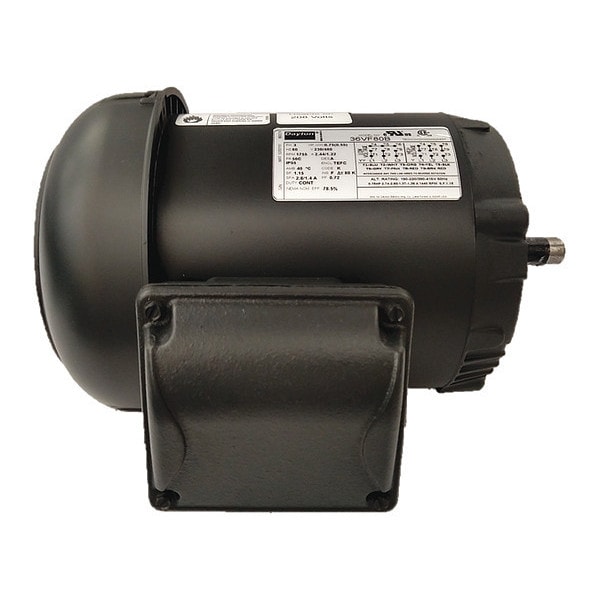

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1720 Nameplate RPM

  • Mfr # 36VF80

  • Zoro # G0691979

product price:
$
305.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

HP
3/4
Nameplate RPM
1720
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
2.4/1.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF80
Zoro #
G0691979
UPC #
190735276129
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/16 in
Overall Length
11 15/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Wire Rope Length
11 15/16 in
Frame Size
56C
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Body Diameter
6.45 in

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
1720
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
2.4/1.2 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
78.5 %
Standards
CE, CSA, UL
Inverter Rated
Yes
Footnotes
2, 15, 56
Green Certification or Other Recognition
NEMA Premium Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Insulation Class
F
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Usable @ 200V
Not Usable at 200V
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Weight
11 5/32 kg
Manufacturers Warranty
1 yr
Frame Material
Steel
Full Load Current @ 60 Hz
2.44/1.22 A
Usable @ 208V
Not Usable at 208V
Efficiency Rating
NEMA Standard Efficiency
Variable Torque Rating
10:1
Bearing Lubrication Type
Permanently Lubricated
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Includes
Shaft Key
Frequency
60 Hz
Shaft Design
Keyed
Bearing Type
Ball
Bearing Protection Type
Shaft Slingers
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Fan Cooled
Conduit Box Location
Exterior

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 1720, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.4/1.2 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 78.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
