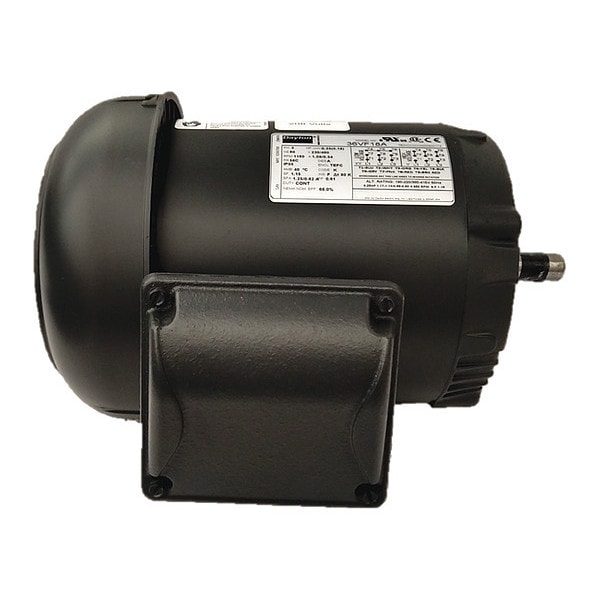

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM

  • Mfr # 36VF18

  • Zoro # G1811041

product price:
$
295.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1160
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.0/0.55 A
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF18
Zoro #
G1811041
UPC #
190735275504
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 5/16 in
Overall Length
11 1/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56C
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.45 in
Wire Rope Length
11 1/8 in
Length
11 1/8 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1160
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.0/0.55 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
68 %
Standards
CE, CSA, UL
Green Certification or Other Recognition
NEMA Premium Rated
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Footnotes
2, 15, 57
Capacitor Required
No
Duty Cycle
Continuous
Includes
Shaft Key
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
NEMA Design Class
B
Efficiency Rating
NEMA Standard Efficiency
Insulation Class
F
Bearing Protection Type
Shaft Slingers
Variable Torque Rating
10:1
Bearing Lubrication Type
Permanently Lubricated
Full Load Current @ 60 Hz
1.09/0.545 A
Nameplate Service Factor @ 60 Hz
1.15
Usable @ 200V
Not Usable at 200V
Application
General Purpose
Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Bearing Type
Ball
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Frequency
60 Hz
Manufacturers Warranty
1 yr
Mounting Position
Horizontal
Weight
9 5/8 kg
Ambient Temperature - Maximum
40 Degrees C

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1160, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.0/0.55 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
