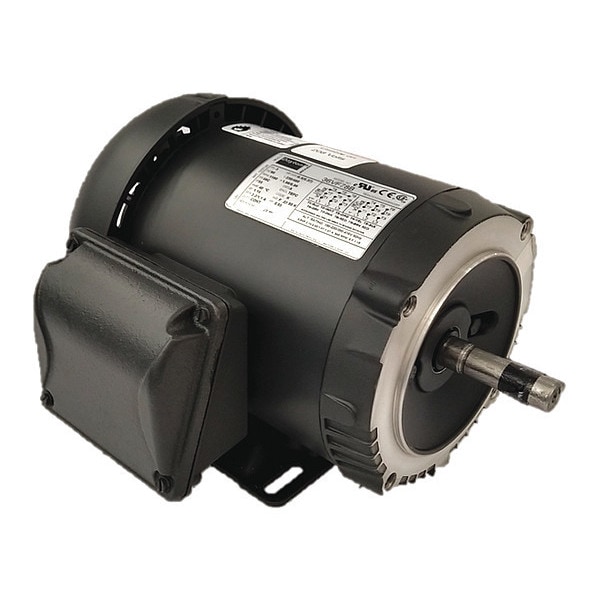

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM

  • Mfr # 36VF78

  • Zoro # G0691988

product price:  $328.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1160
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.9/0.99 A
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF78
Zoro #
G0691988
UPC #
190735276105
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 7/16 in
Overall Length
12 5/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Wire Rope Length
12 5/16 in
Body Diameter
6.45 in
Frame Size
56C
Bolt Circle Diameter
5 7/8 in

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
1160
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.9/0.99 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
72 %
Standards
CE, CSA, UL
Footnotes
2, 15, 57
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Frequency
60 Hz
Application
General Purpose
Usable @ 200V
Not Usable at 200V
Ambient Temperature - Maximum
40 Degrees C
Weight
12 9/16 kg
Full Load Current @ 60 Hz
1.98/0.992 A
Efficiency Rating
NEMA Standard Efficiency
Bearing Type
Ball
Bearing Lubrication Type
Permanently Lubricated
Includes
Shaft Key
Number of Speeds
1
Shaft Design
Keyed
Insulation Class
F
Bearing Protection Type
Shaft Slingers
Mounting Position
Horizontal
Variable Torque Rating
10:1
Inverter Rating
Inverter Rated
NEMA Design Class
B
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15
Conduit Box Location
Exterior
Frame Material
Steel
Product Type
General Purpose Motor
Usable @ 208V
Not Usable at 208V
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1160, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.9/0.99 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
