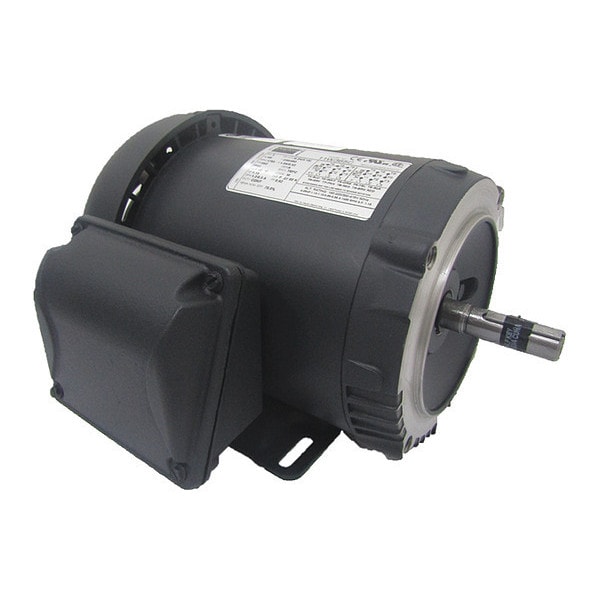

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1720 Nameplate RPM

  • Mfr # 11W365
  • Zoro # G4063796
product price:
$
258.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1720
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.0/0.50 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
11W365
Zoro #
G4063796
UPC #
190735111253
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 11/16 in
Overall Length
10 9/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Body Diameter
6.45 in
Frame Size
56C
Wire Rope Length
10 9/16 in
Length
10 9/16 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1720
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.0/0.50 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
70 %
Standards
CE, CSA, UL
Motor Thermal Protection
None
Footnotes
2,10
NEMA Design
B
Duty Cycle
Continuous
Inverter Rated
Yes
Bearing Type
Ball
NEMA Design Class
B
Efficiency Rating
NEMA Standard Efficiency
Usable @ 208V
Not Usable at 208V
Insulation Class
F
Inverter Rating
Inverter Rated
Weight
9 1/32 kg
Frequency
60 Hz
Conduit Box Location
Exterior
Application
General Purpose
Bearing Protection Type
Shaft Slingers
Usable @ 200V
Not Usable at 200V
Includes
Shaft Key
Ambient Temperature - Maximum
40 Degrees C
Bearing Lubrication Type
Permanently Lubricated
Shaft Design
Keyed
Variable Torque Rating
10:1
Full Load Current @ 60 Hz
1.04/0.521 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
General Purpose Motor
Number of Speeds
1
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1720, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.0/0.50 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 70 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
